Black Friday Sale [Pre-Order] 2024 Xhorse CONDOR XC-002 Pro XC002 Pro Manual Key Cutting Machine Optimized Performance Ultra-High Precision Duplication

Produktbeschreibung

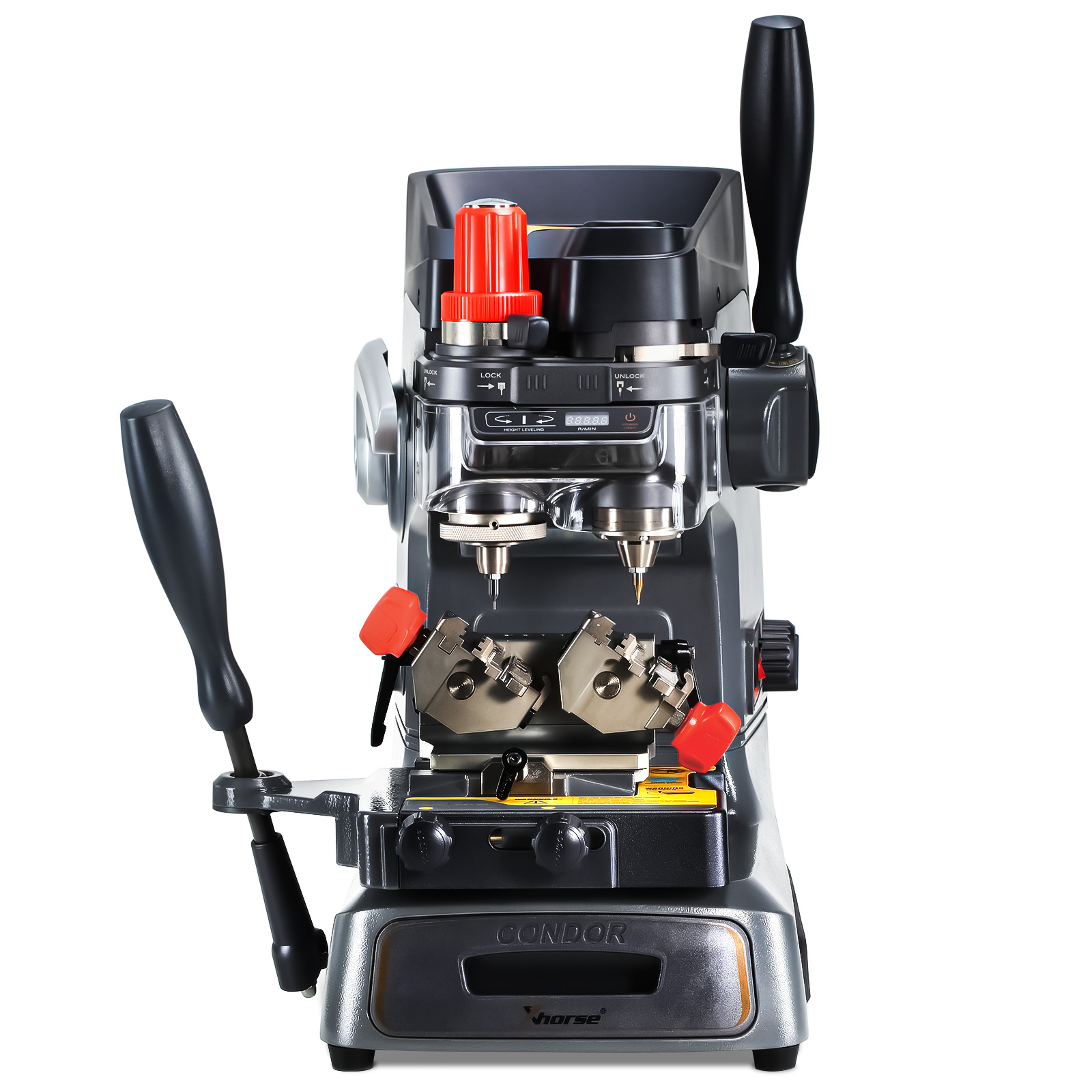

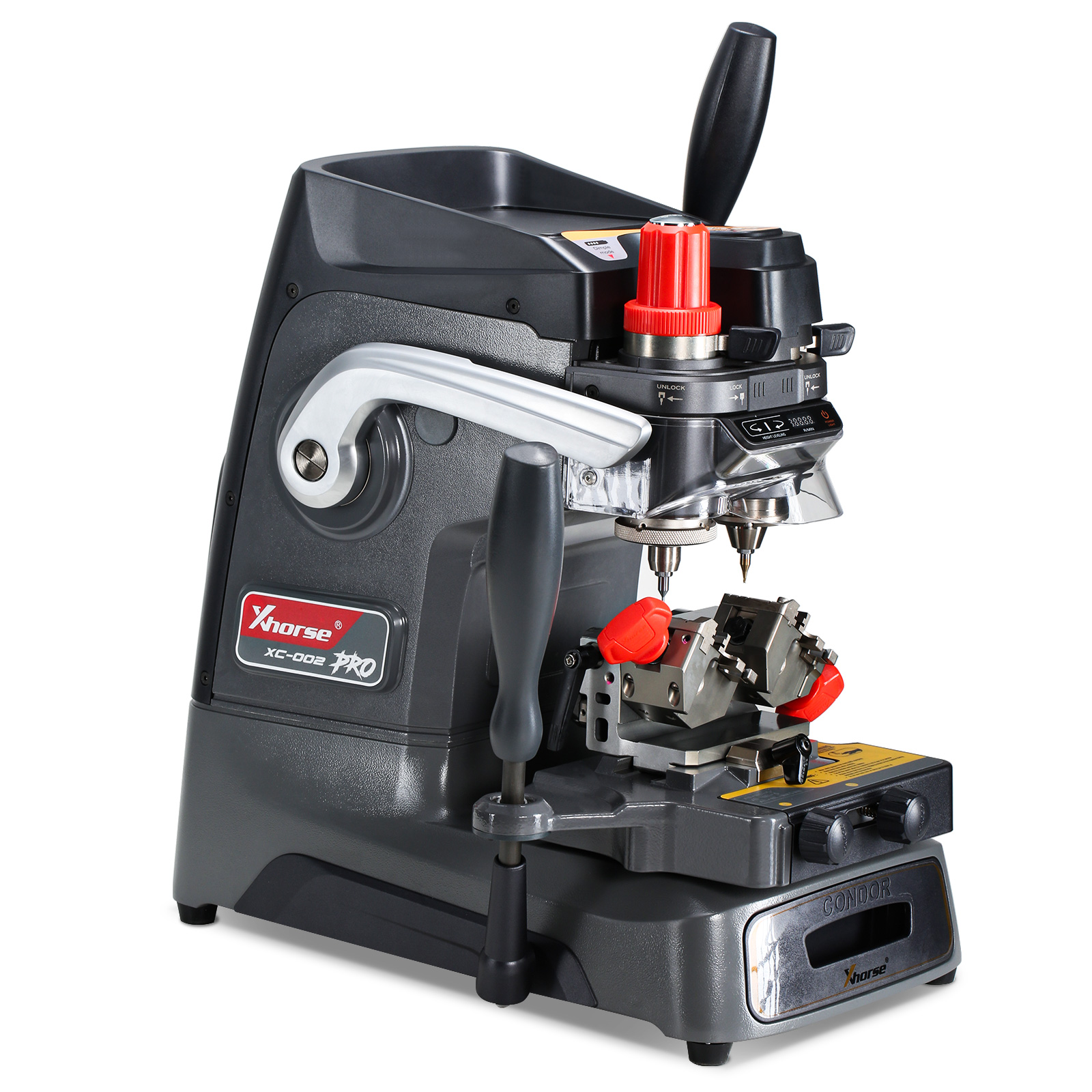

Xhorse CONDOR XC-002 Pro XC002 Pro Manual Key Cutting Machine

Xhorse Condor XC002 PRO is a brand-new replacement on the market. It adopts quick tool change technology to realize quick tool-free replacement of milling cutters and probes, and at the same time ensures that the milling cutter probe is clamped in the center; the multi-angle adjustable multi-function fixture can be adjusted from 0 to 45 degrees , supports various types of keys such as internal milling, external milling, punching, and plum blossom; adopts high-performance and high-power brushless motors, infinitely variable speed, and controls as you like.



Highlights:

1. Convenient and Practical Ergonomics Handle Design
2. Renishaw Line Detection System, Column Cross Guide Rail
3. Aluminum Die-Casting Chassis, Precision Machining
4. Patented Rotating Clamp Design Suitable for Multi Key Blanks and Blades
5. Precision-Machined High-Strength Aluminum Die-Casting Chassis with Superior Texture
6. If You Buy this Condor XC002 Pro, We Can Authorize Your VVDI MB Tool with 1 Free Token Everyday .
    If You Have Both Condor XC002 Pro and Condor XC Mini, Your VVDI MB Tool Can Has 2 Free Token Per Day



More Advantages

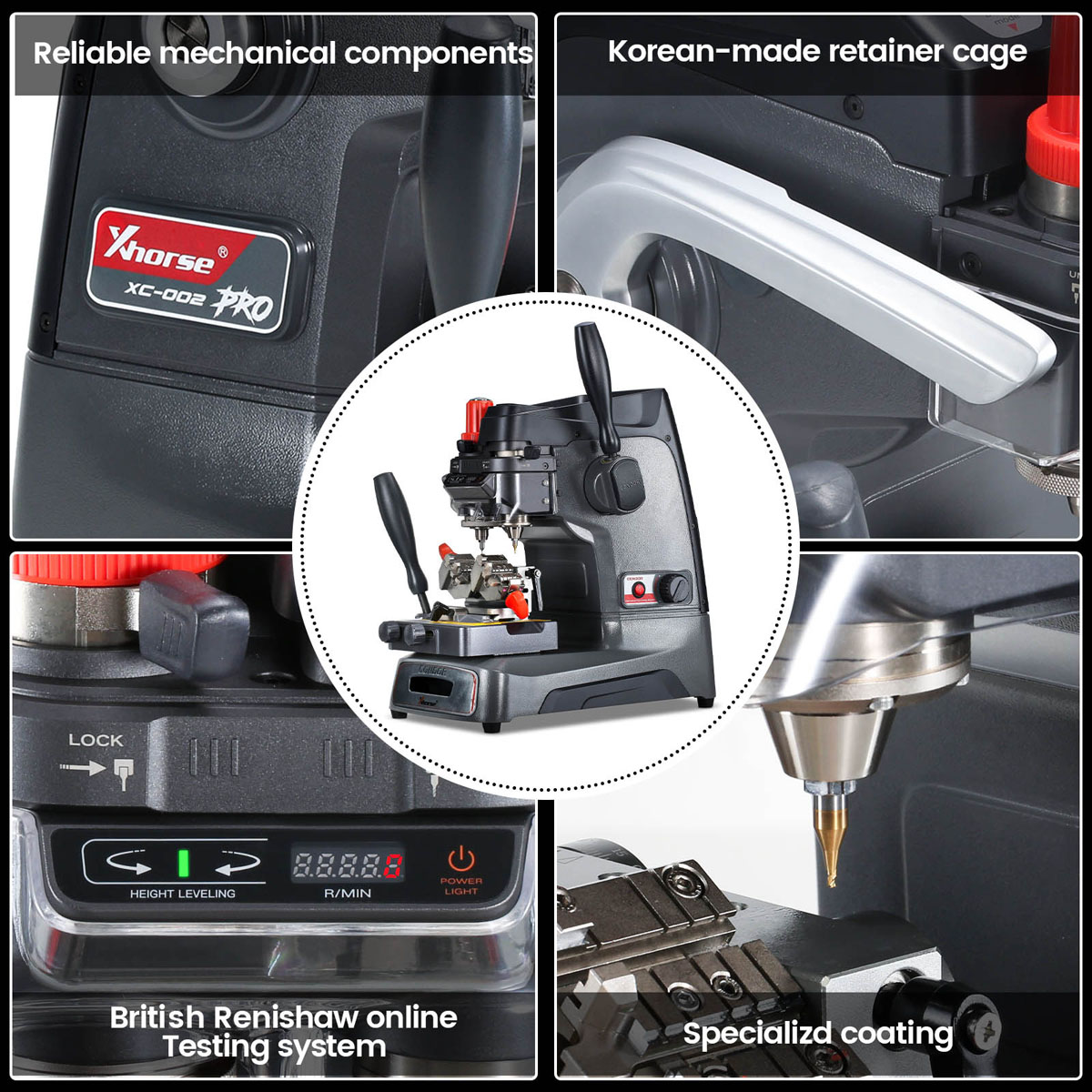

1. Reliable Mechanical Structure

CONDOR XC-002 PRO is manufactured with reliable mechanical components, ensuring ultra-high precision duplication.
Its Korean-made retainer cage greatly maintains a good running status; Its British Renishaw online testing system spots flawless key cutting locations;
Covered with specialized coating, the cutter made of Japanese raw materials guarantees a long service life.

2. Ergonomic Design

Based on deep research on users' operation habits, CONDOR XC-002PRO has been greatly optimized regarding its materials, handle radian, grip, touch, control, and cutting operation.

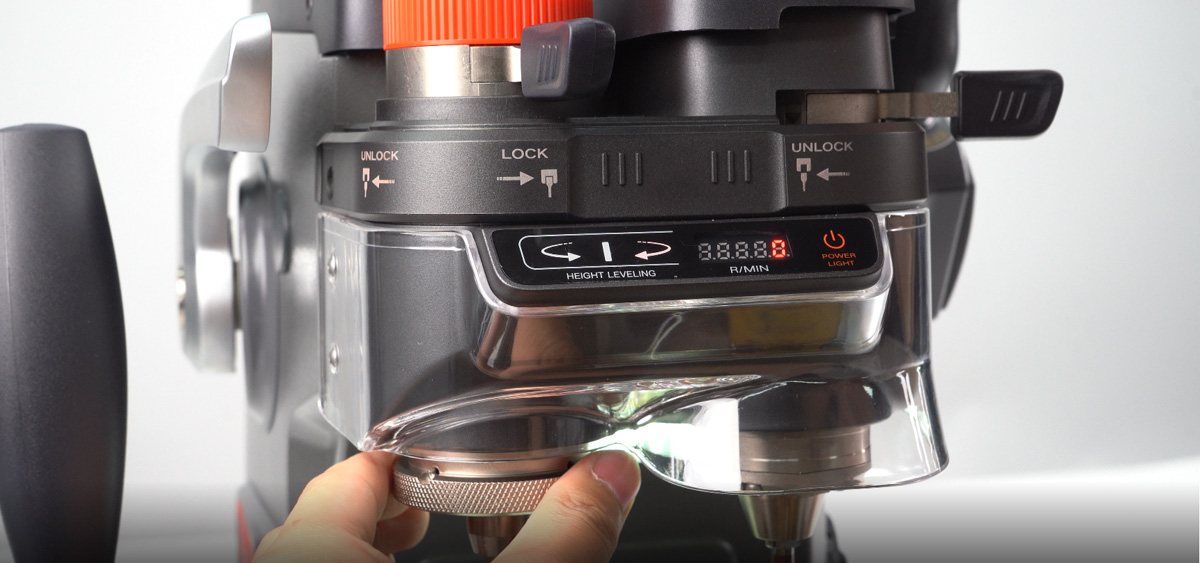

With a built-in indicator light, you can level the probe and the cutter at ease. An intelligent LCD screen displays the spindle speed for your convenience.

3. Masterful Craftsmanship

At the bottom of the machine, the storage box thoughtfully designed helps users store probes, cutters, and key blades.
The machine body forged by the all-aluminum die-casting process (thermal treatment) ensures greater stability.
All the main components processed by the German-made DMG CNC machine guarantee high-precision duplicating results.



Features:

0~45° Rotatable Clamp
Internal Cut/ External Cut/ Dimple Key
Calibrating Light and Micro-adjust Guide
Household Keys Cutting
Superior Mechanical Structure
Super Motor Height Leve Adjustment
Adequate Cutting Power Indicator Light
High-quality Cross Rail Tracks
Core Components Processed by German-made CNC

Support Key Types:

It will duplicate dimple, double sided, single sided, 4 track external, 2 track external, 4 track internal, channel track keys.

Functions:

1. Probes & Cutters Upgraded Solution

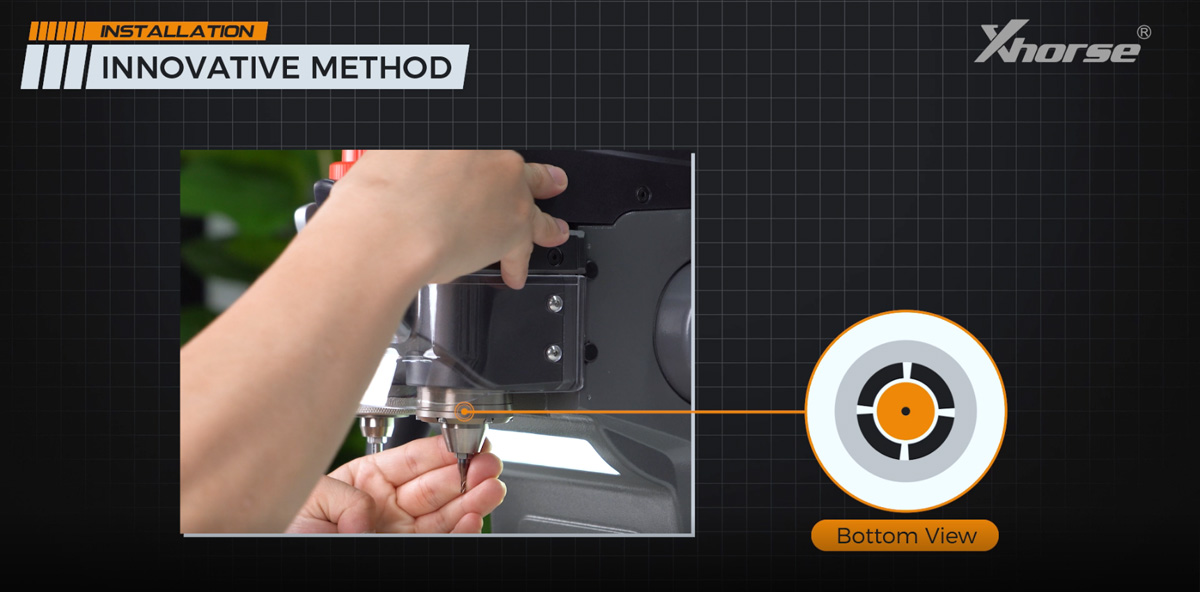

1)  Probes & Cutters Switching Quickly
CONDOR XC-002 PRO comes with a brand-new design that will revolutionize the industry. The lock switch can achieve probes and cutters switching quickly and central clamping of the probe and cutter easily with no need for an Allen wrench, bringing a seamless and efficient working experience.

What you need to do are just the following:

* Simply loosen the lock switch to make sure it's unlocked
* Insert and hold the probe/cutter all the way up
* Pull to lock the switch

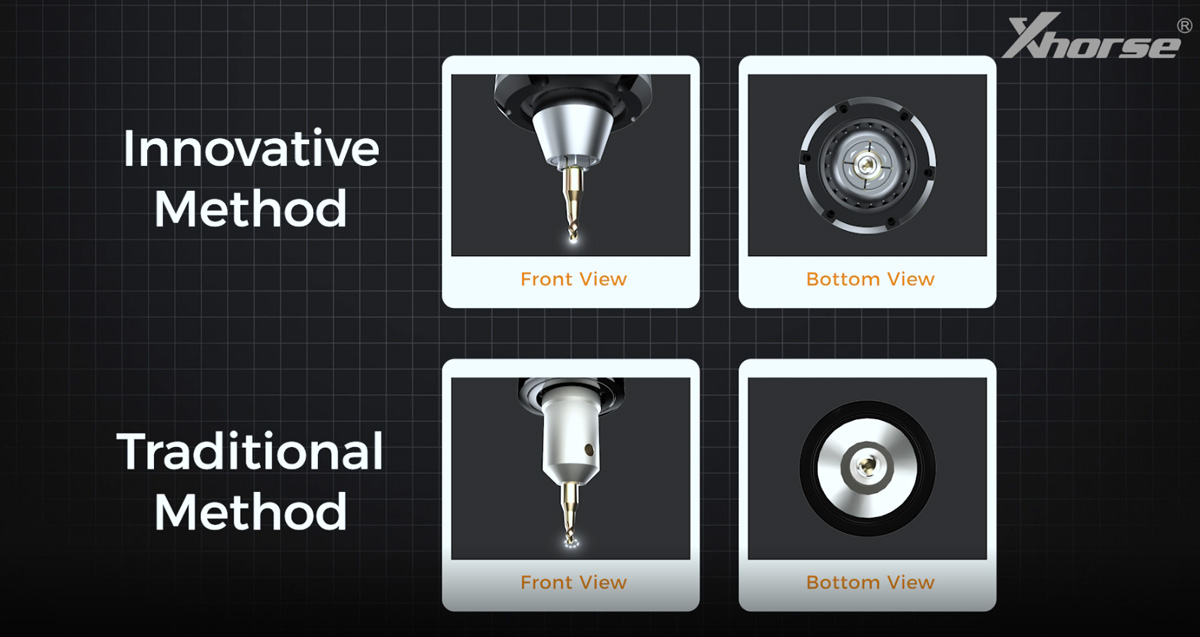

2) Central Clamping of the Probe & Cutter

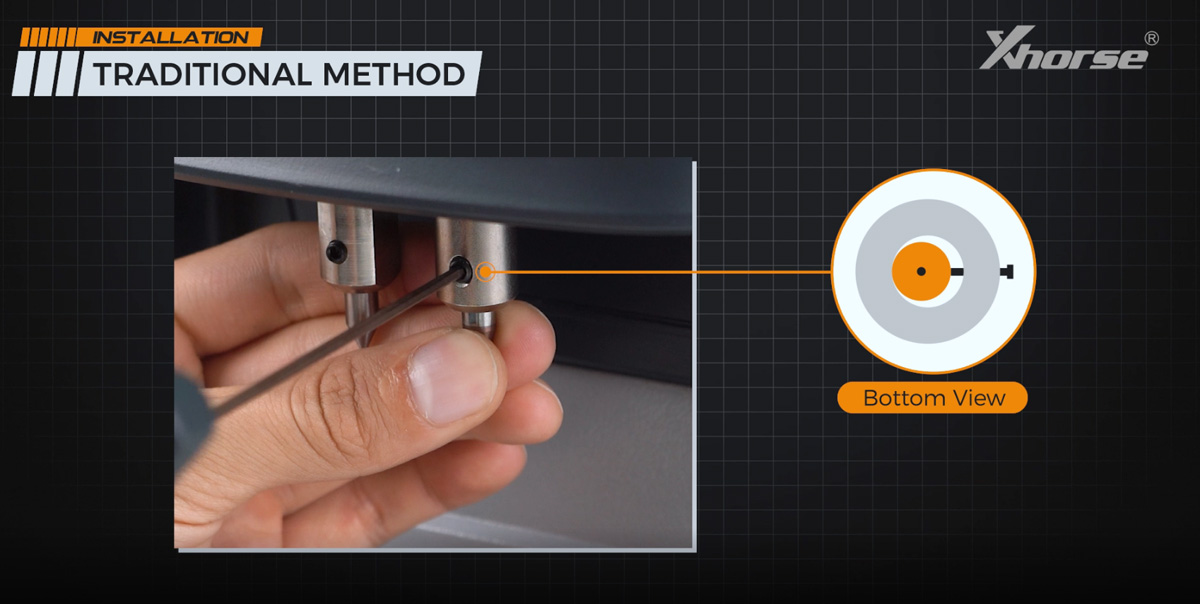

The innovative approach not only simplifies the installation but also ensures the automatic centering and clamping of the probe and the cutter, avoiding center deviation caused by the traditional method and greatly improving the accuracy and reliability of cutting.





2. Multiple Modes Available

Multiple gears allow users to adjust the spindle speed in accordance with their needs to elevate efhciency and prolong its service life.

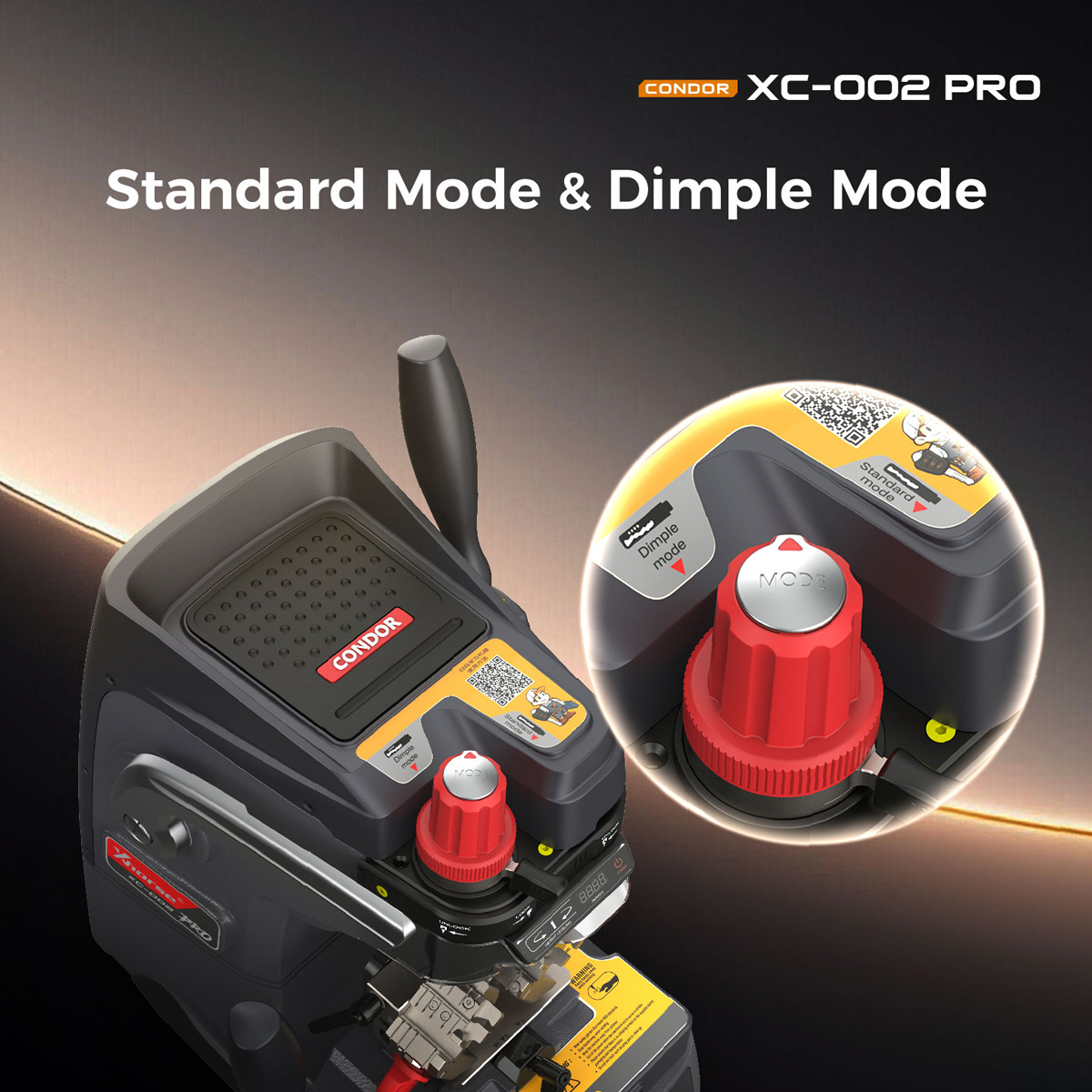

Standard mode and dimple mode are introduced to streamline cutting for both dimple keys and ordinary keys.

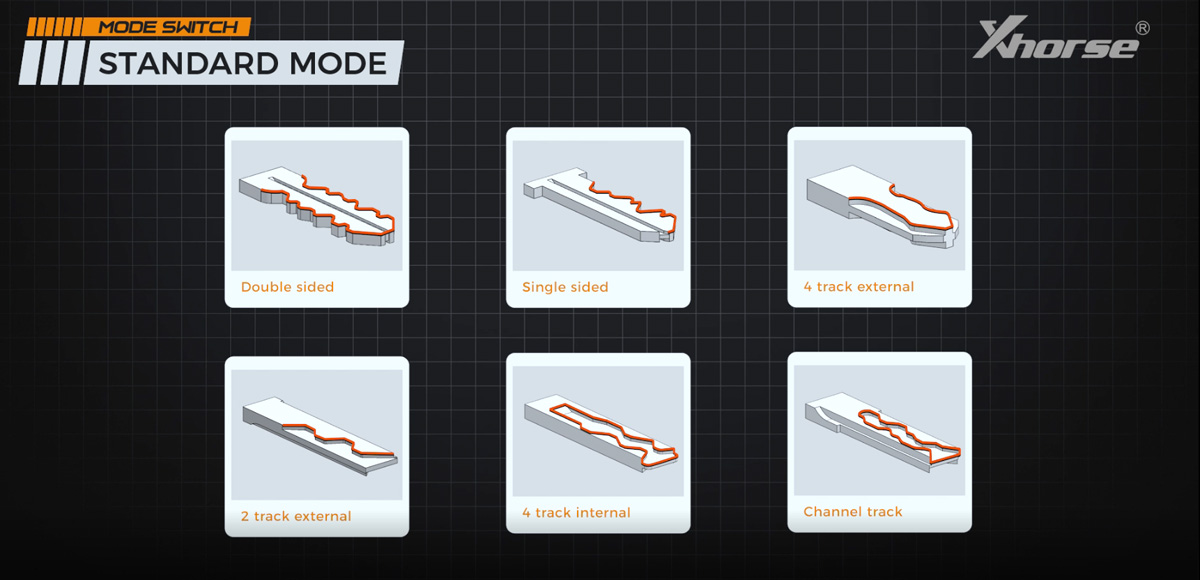

* Standard Mode:
In this mode, the probe can not move up and down and remains stationary, ideal for cutting various key types such as double sided, single sided, 4 track external, 2 track external, 4 track internal, and channel track keys.

* Dimple Mode:
The probe is capable of vertical movement to detect the depth of the holes in the key. The mode is mainly used to duplicate dimple keys




3. Innovative Multi-Function Clamp

1) 0~45° Rotatable Clamp
The multi-function clamp allows for cutting dimple keys of different angles (0~45°). You can adjust the angle of the clamp to finish cutting based on the original key. Currently, CONDOR XC-002 PRO supports duplicating

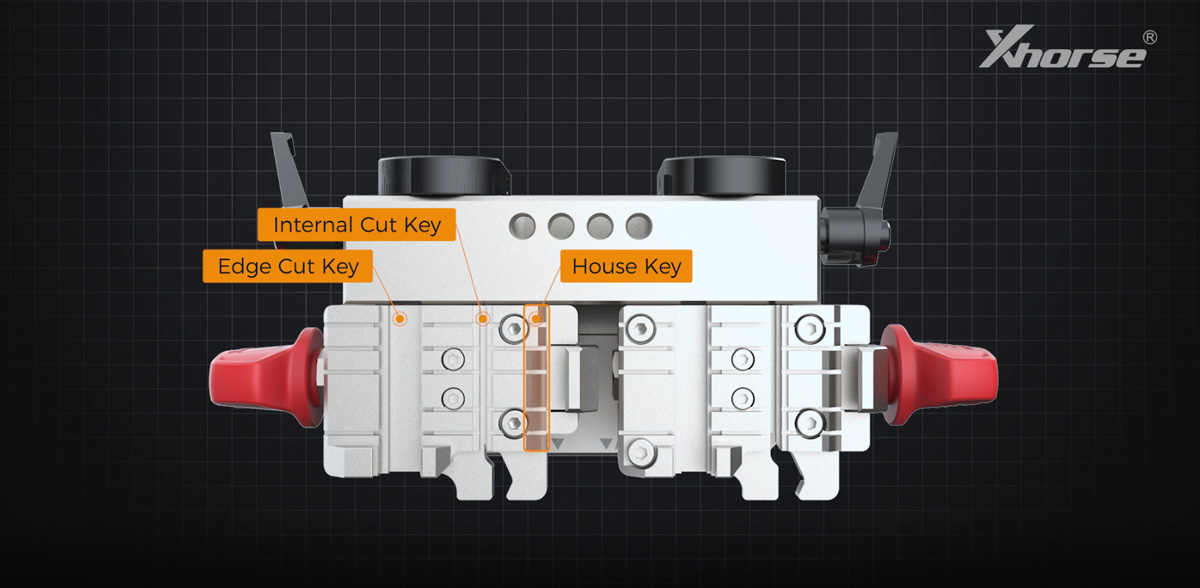

2) Internal Cut/ External Cut/ Dimple Key
CONDOR XC-002 PRO features 3 grooves for key clamping. This design facilitates the machine to duplicate multiple keys, such as standard single sided, double sided, 4 track external, 2 track external, 4 track internal, channel track, and dimple keys with angles.

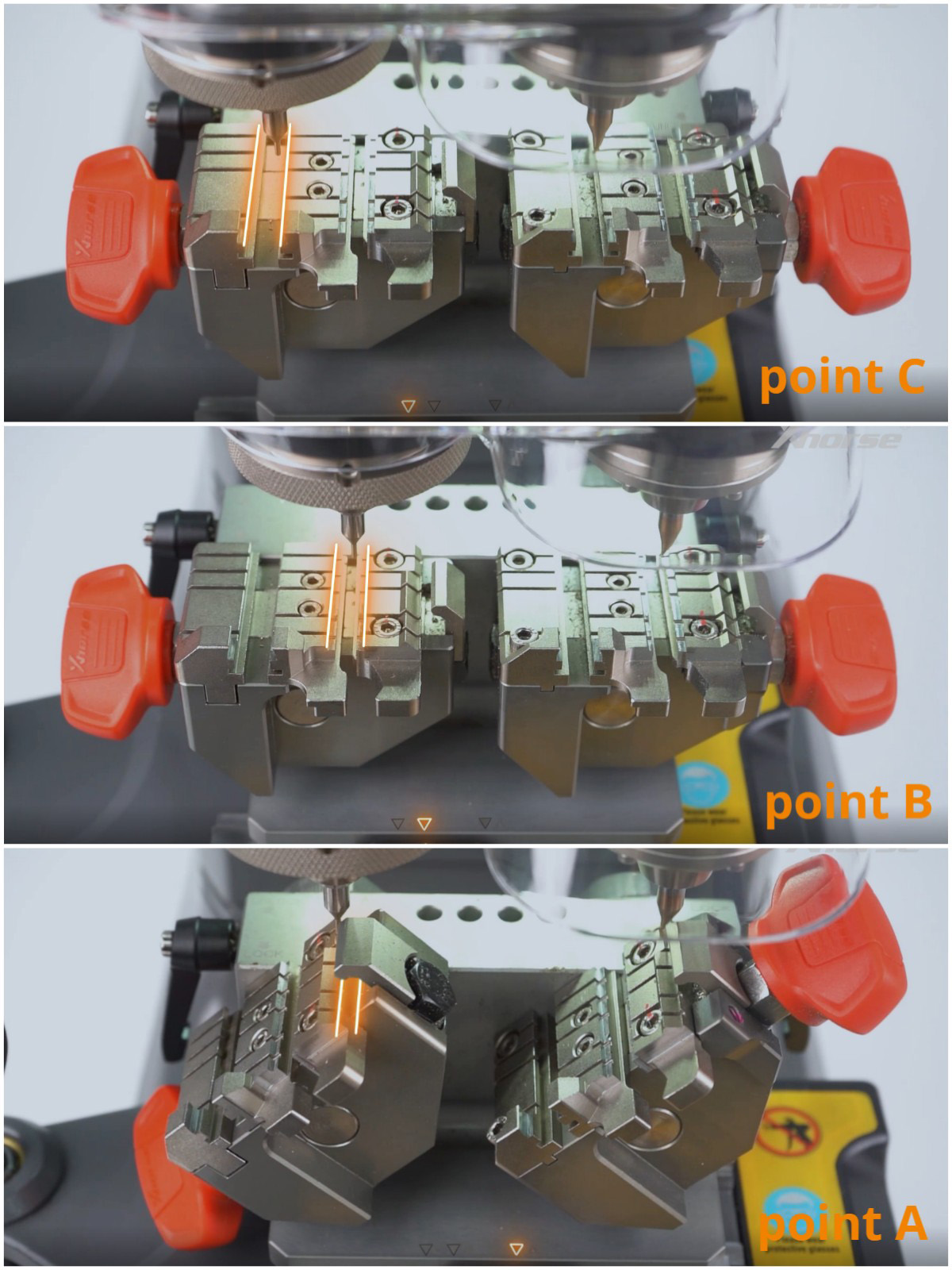

Each of the grooves has its recommended clamp mounting location.
* The left groove corresponds to point C
* The middle groove corresponds to point B
* The right groove corresponds to point A
Of course, you can also adjust the position of the clamp according to your operating habits.

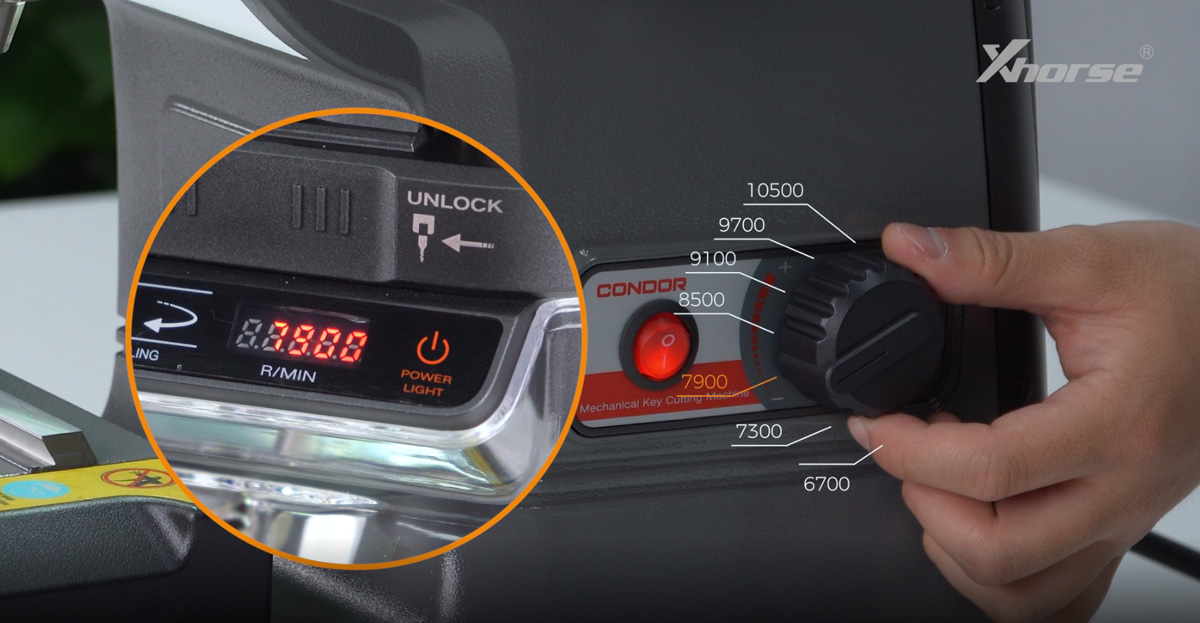

4. High-Speed Motor

After powering up the machine, when you press down the main handle, you can see the cutter actually is not spinning. It's a design What you need to do is turn on the cutter power switch on the left side and you can rotate the handle clockwise to achieve height locking of the probes and cutters. CONDOR XC-002 PRO now offers seven speeds, which allows you to adjust the spindle speed in accordance with your needs to elevate efficiency and prolong its service life



5. Micro-Adjust Guide

CONDOR XC-002 PRO features a high-precision micro-adjust knob and an indicator light, allowing you to easily finish the adjustment and further ensure duplication accuracy.

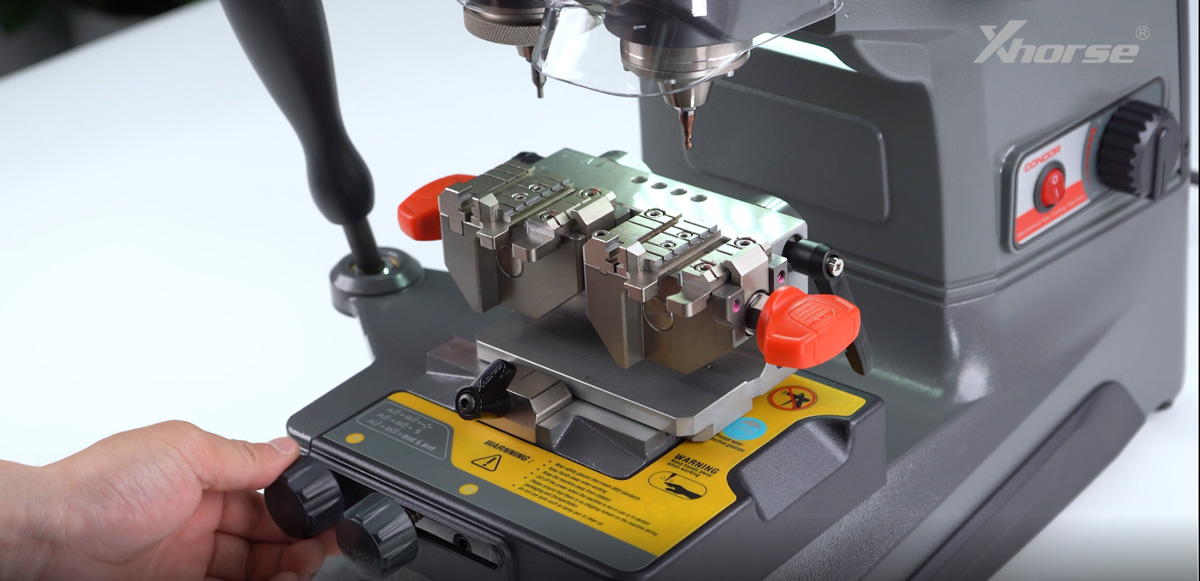

6. Cutting Platform with Limitation Knobs

1) When two limitation knobs are fully released, the cutting platform can be moved freely.
2) If we only tighten the right knob, the cutting platform can only move along Y-axis. However, when moving along the X-axis, the platform will always go back to its original position after you release the handle.
3) If both knobs are tightened, the cutting platform can only move along Y-axis and the X-axis movement is completly locked.
This can help us when cutting some keys that require linear cutting



Specification:

Input voltage: 220VAC
Input frequency: 50Hz
Consume: 200W
Package Dimensions: L595xW550xH375mm
Machine Dimensions: L298xW445xH525mm
Spindle Speeds: 8000-10000rpm
Noise Decibel: 77dB
Working Temperature: 0-50℃
Humidity: 10-90%

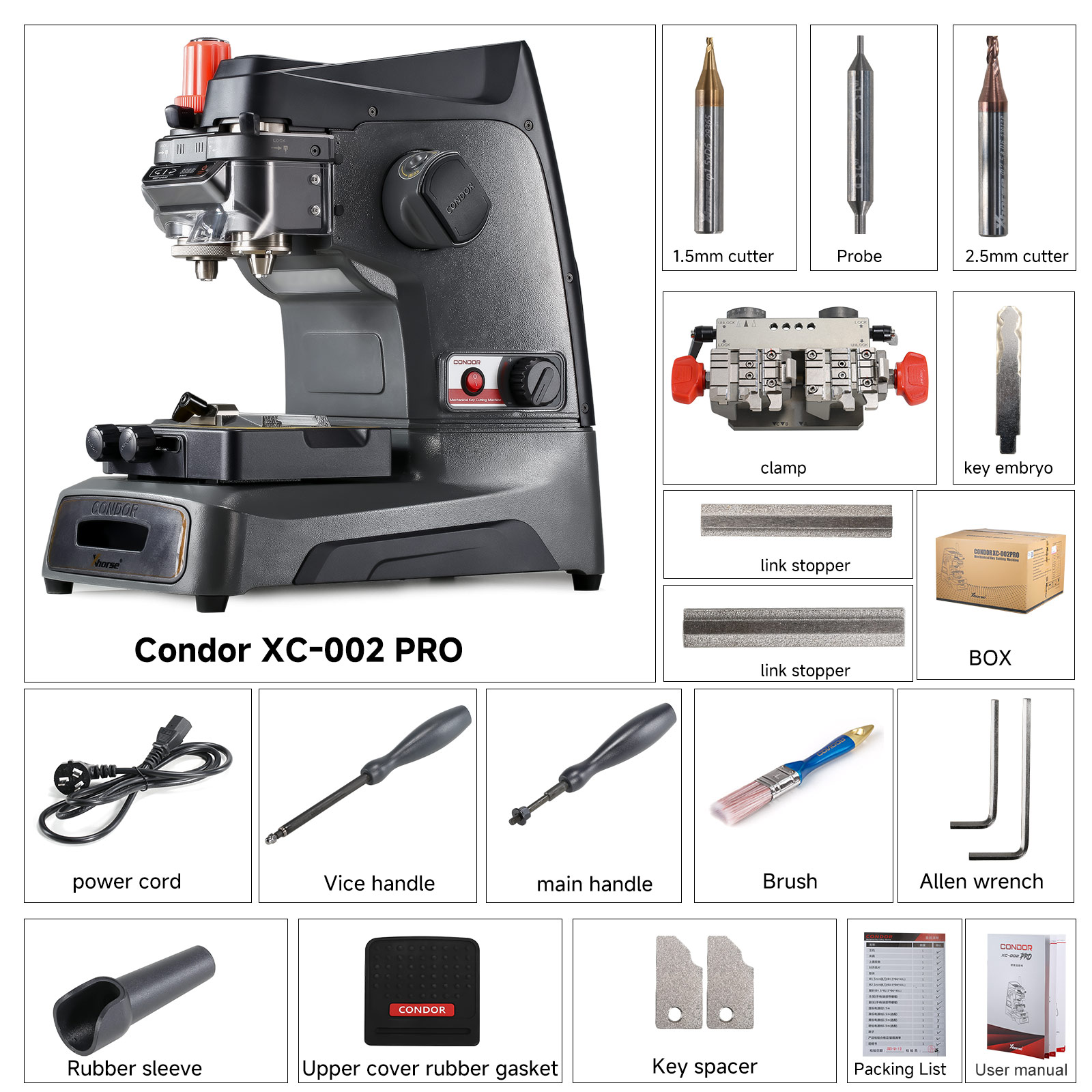

Package List

1pc x XHORSE Condor XC-002 PRO main unit
1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x probe
1pc x power cord
1pc x clamp









---
