Xhorse Key Tool Plus Full Version All License Activated with Extra MQB48, BMW Bench ISN, BMW Motorcycle OBD Learning Authorization

Produktbeschreibung

Xhorse Key Tool Plus Full Version All License Activated with Extra MQB48, BMW Bench ISN, BMW Motorcycle OBD Learning Authorization

Bundle Package for Sale:

1. Xhorse Key Tool Plus
2. MQB48 authorization
3. BMW Bench ISN Authorization
4. BMW Motorcycle Authorization
5. One Year Unlimited BGA Token
6. One Year ID48 Token (3 Tokens/Per Day)

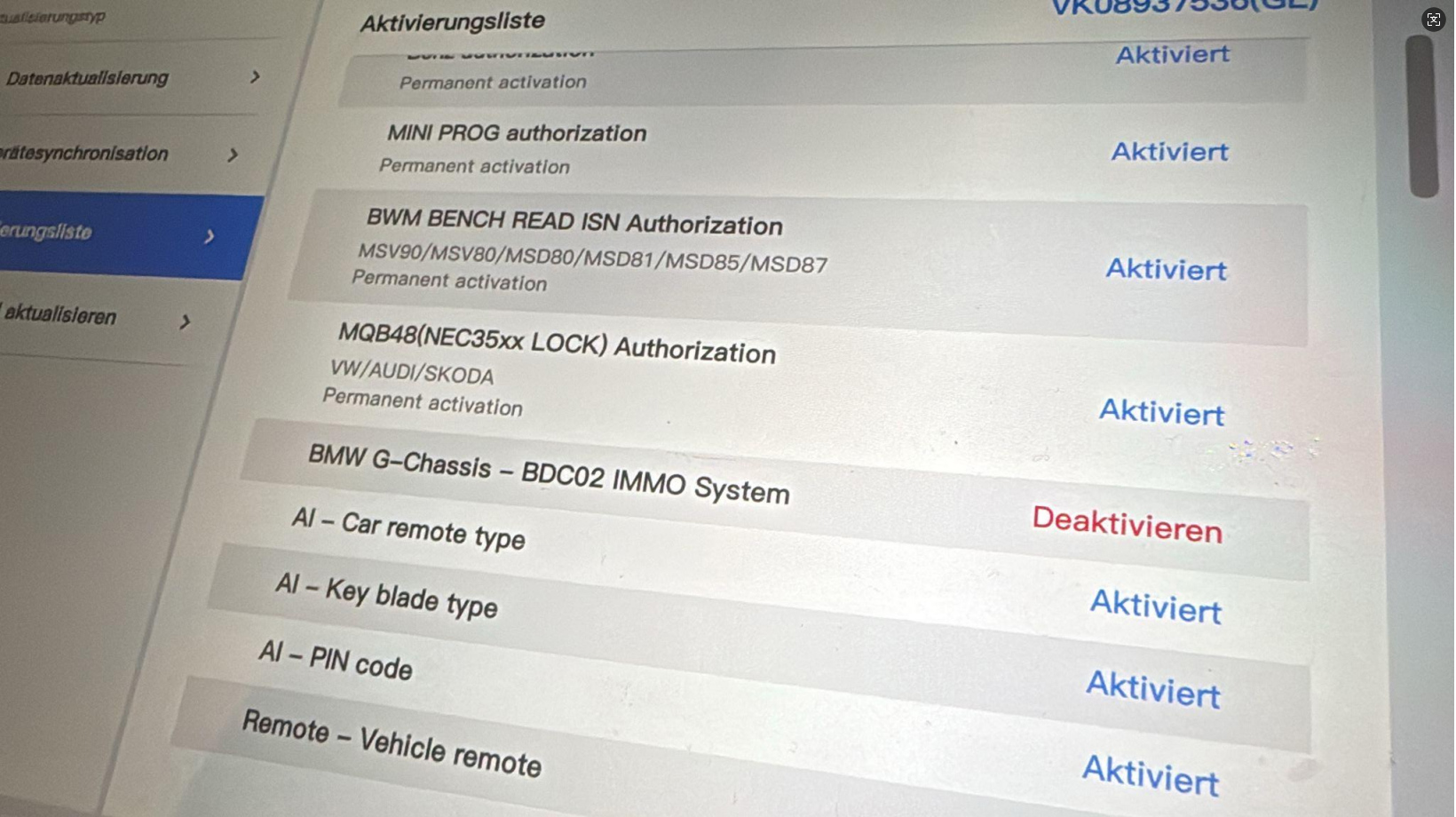

Notice: After you received the Key Tool Plus, please send us serial number and we will activate the rest of authorization for you!

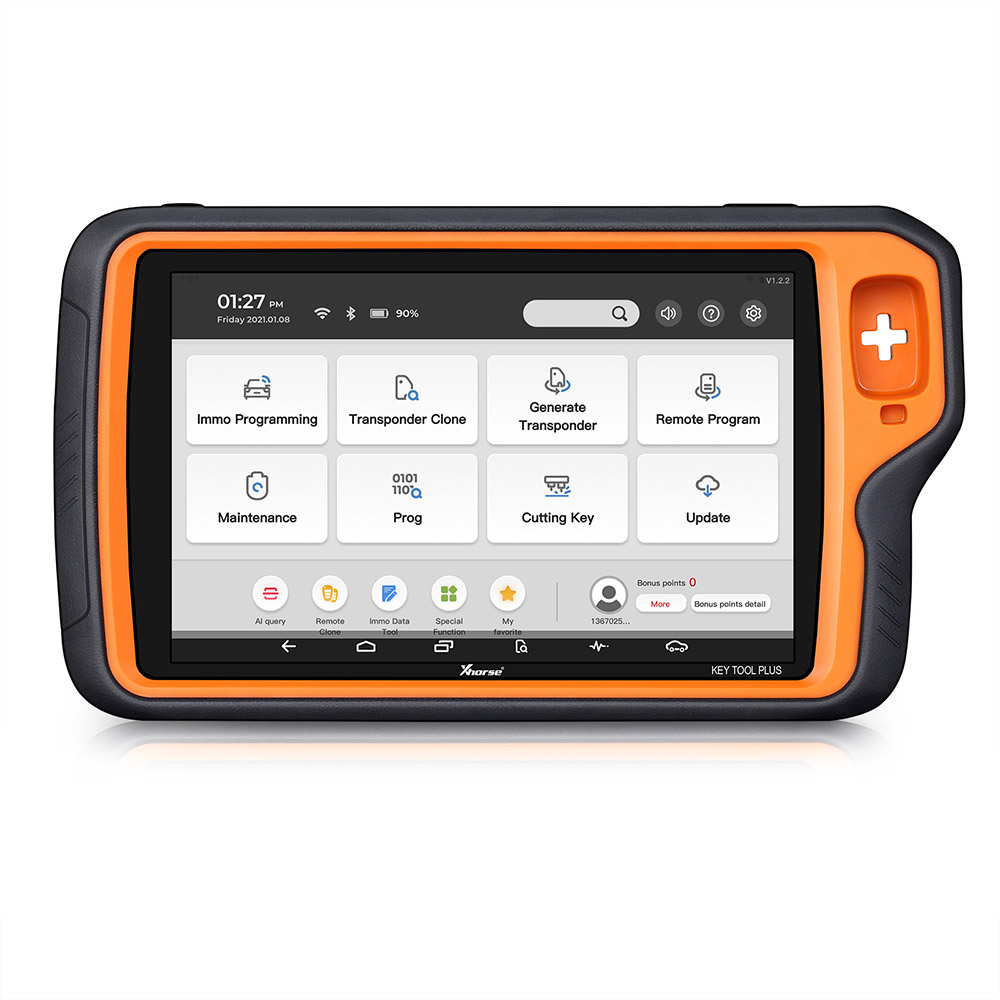

VVDI Key Tool Plus Function:

1. OBD IMMO Programming

KEY TOOL PLUS can be connected to the car via OBD connection cable to complete OBD immo programming and other OBD functions on most common car models. Currently, KEY TOOL PLUS supports lots of car brands such as Benz, BMW, Audi, VW, Toyota, Honda, Mazda, Ford, Cadillac, Hyundai, Kia, Renault, Nissan, SEAT, Fiat, JEEP and Chrysler. In immo programming menu, users can select the car brands and car models according to the brand area. KEY TOOL PLUS supports immo programming/matching for over 20,000 car models around the world.

1) IMMO Programming
After selecting your car model, the supported OBD programming menu will show up on the screen. For the same model, there might be a variety of immo systems. If users can't identify which system it is, users can try them out one by one, or detect it automatically. The common OBD functions include adding key, all key lost and remote clearing.

Read key number: You can acquire the number of remotes that the car currently has by OBD.
Add key: You can program the key by OBD.
Clear DTCs: You can clear DTCs generated while programming

* IMMO Programming for Luxury Cars
As a versatile automotive security device, KEY TOOL PLUS simplifies immo programming for luxury cars like Volkswagen, AUDI, BMW, BENZ, Porsche, Bentley, SEAT, etc.
Users can effortlessly finish the tough work in one single tablet.
Additionally, the support car models won't end here: more cars will be included in the list by Xhorse.

* VW & AUDI IMMO Programming
3rd/ 4th/ 5th generation
MQB
MED17/EDC17
Leading Team with Leading Tech
KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/adaption/replacing, diagnostic function, etc. to resolve most problems they met in immo programming for Volkswagen and AUDI cars.

* BMW IMMO Programming
Extremely Cost-effective, Surprisingly Professional
KEY TOOL PLUS can achieve BMW CAS1/ CAS2/ CAS3/ CAS3+/ CAS4/ CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc.
Getting work done has never been easier.

* Mercedes-Benz IMMO Prorgamming
User-demand-oriented, Innovation-driven

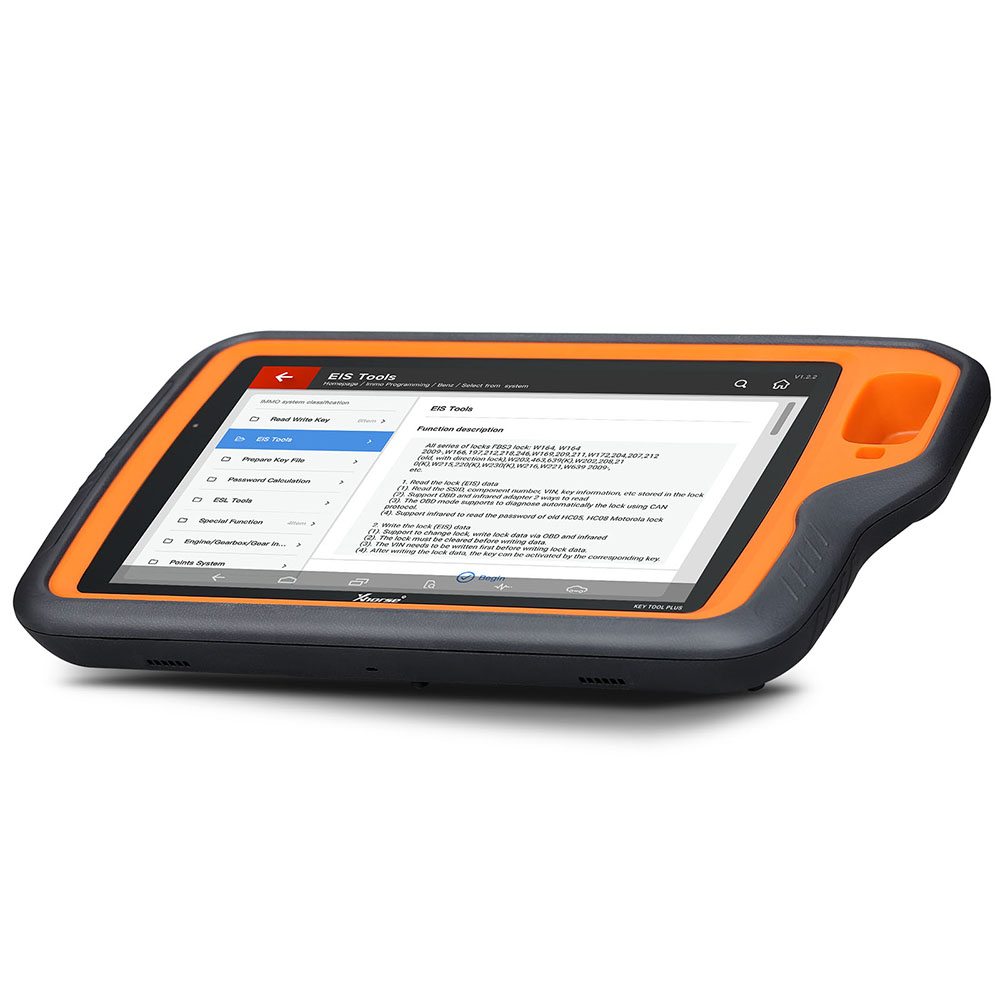

KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and EIS/EZS, ELV, ECU, gearbox, ISM replacing.



2) Authorization code
The authorization code is required while completing immo programming on some car models. KEY TOOL PLUS supports authorization code reading of some car models. For those codes it can't read, users need to ask for the authorized person to get the authorization code, then to complete the immobilizer programming.
For example, the PEUGEOT series car models need password reading. there are different methods to read passwords according to different car model years. Users can try them out one by one.

2. Remote and Transponder

1) Remote generation & clone
KEY TOOL PLUS supports various functions such as remote generation, transponder clone and smart key generation for a variety of car models. Users can easily generate remotes for most car models by using Xhorse universal remotes on KEY TOOL PLUS
KEY TOOL PLUS supports remote generation for ordinary cars, smart key generation, frequency detection, remote clone for a variety of car models. More car models will be supported for free in the future. In remote program, you can search the car brand based on the brand area on the left, via on the right, or in all brands. Besides, KEY TOOL PLUS also supports my favorites for your convenience

2) Transponder read, generation & clone
KEY TOOL PLUS has comprehensive programming functions covering transponder detection, clone and generation which supports most common transponders such as 11, 12, 13, 33, 42, 46, 4D, 48, 8A, 8C. It also supports Xhorse super transponder.
KEY TOOL PLUS can precisely read the remote transponder as AUDI 5th generation and also read the remote reading status, remote frequency, synchronized mileage information of the vehicle

Some vehicle transponders can be directly cloned without any need to complete car matching in the car. Users can copy all the transponder ID48. For example, all transponder ID48 of VW car models can be directly cloned online, no need to complete car matching in the car.
Some vehicle remote needs a specialized transponder when matching. KEY TOOL PLUS can convert Xhorse super transponder into common car model's transponder. The super transponder is converted into a Toyota Corolla 8A chip.



3) Special Functions
* Remote renew
Car key will be locked after programming and can not be used again. This function can unlock programmed keys of multiple brands and models. Renew adapters and cables are needed when operating.

* Ignition coil signal detection
When car key is undergoing all lost, you can use KEY TOOL PLUS to detect the transponder type of the car's ignition coil and whether the coil is working. You can put the antenna close to the ignition switch and turn it on and off a couple of times. Then ignition coil information will be shown on the device

* Smart key customization
KEY TOOL PLUS supports customization on Xhorse universal smart key button settings and frequency adjustment to apply to different scenarios and car models. first read the smart key, then adjust relevant parameter and write the data in.

3. Prog Functions

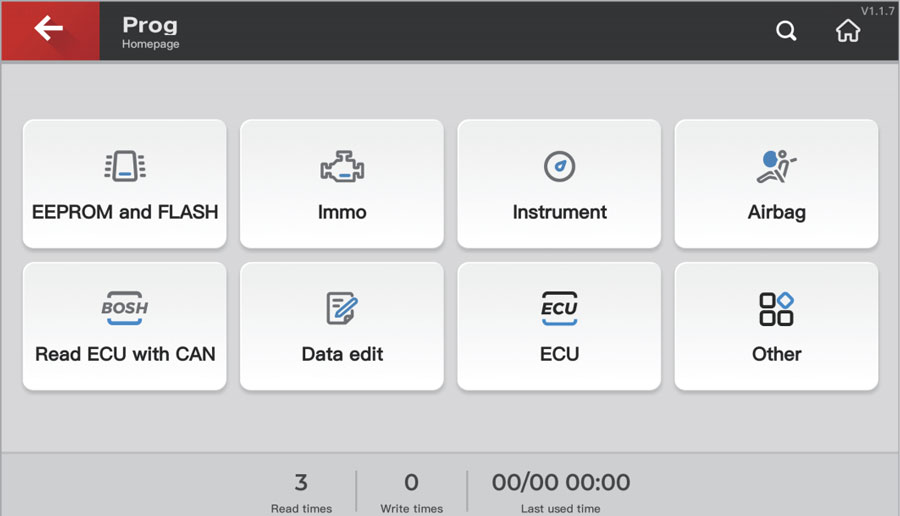

KEY TOOL PLUS supports reading and writing common modules and chips. These modules include "EEPROM and FLASH", "IMMO", "Instrument", "Airbag" and "ECU". Users can operate according to the specific modules of car model or chip manufacturer.
Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition

Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support Land Rover RFA module reading and immo programming.
Support Porsche BCM programming.
Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
Support Instrument programming on HONDA, KIA, and HYUNDAI.
Support EEPROM reading and writing: support reading & writing most types of transponders in the market.such as:ATMEL, Mitsubishi, Winbond, Catalyst, ST, XICOR, Microchip, SEIKO, Xhorse, MXIC,Toshiba

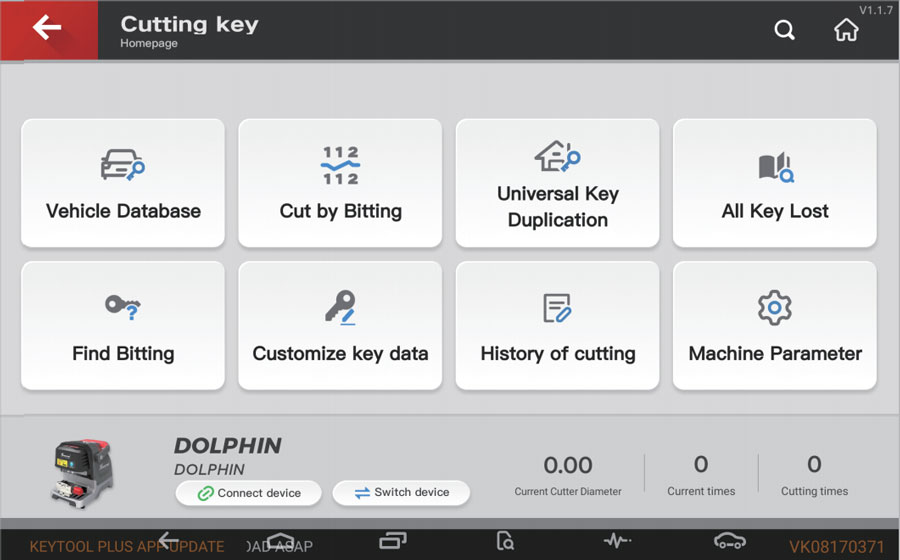

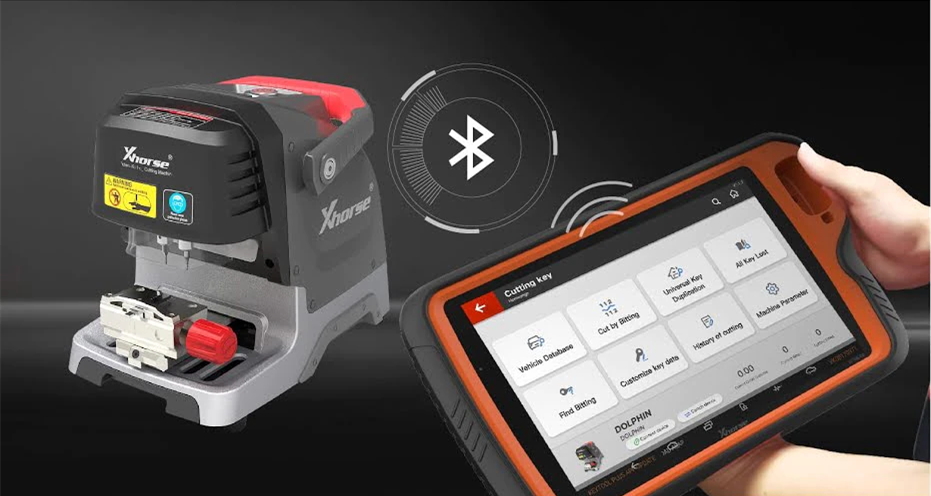

4. Control Xhorse Key Cutting Machines

Key Tool Plus is available to control the Xhorse key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using
KEY TOOL PLUS, completely free your mobile phones.




Xhorse Volkswagen MQB48 NEC35XX Authorization

Features:

MQB Add key, All Keys Lost (AKL requires sync data from 3rd party)
Support all MQB48 with NEC35xx chip-Require read encrypt data with VVDIPROG
Support decode immo data, key learn, fix KM, update immo data etc.
Support VDO type, JCI type, and all key lost situation (require synchronize data)

Support List

VW: Golf7 CC Magotan T-ROC TAYRON Sagitar Bora Lamando Variant Lavida TiguanL Teramont
Audi: A3 Q2 Q3L
Skoda: Octavia, Kodiaq, Superb, Karoq

Cluster List:

MQB Cluster D70F3532 (A2C81589500)-A
Dash type: 560G920750

MQB cluster D70F3529
dash type 5G1920730B

MQB Cluster D70F3526 (A2C81589700)-C
dash type: 3G0920791B

MQB Cluster D70F3526 (A2C81589700)-B
dash type: 8V0920861

MQB Cluster D70F3526 (A2C81589700)-A
dash type:6C0920740A 6C0920940

MQB Cluster D70F3525 (A2C81589600)-B
dash type: 8V0920861

MQB Cluster D70F3525 (A2C81589600)-A
Dash type:56G920730C



Xhorse BMW ISN Authorization Function

Function requires to use Bosh ECU Adapter XNDP30.

Supported types

MSV80
MSV90
MSD80
MSD81
MSD85
MSD87
N20
N55
B38
B48
B58


Xhorse BMW Motorcycle OBD Key Learning Authorization

Features:

Unlock X_SLZ/X_EWS
Upgrade original file(X_SLZ/X_EWS)
Read Pin code
Erase key
OBD add key
Read key information
Coding function
Restore coding

Supported models:

BMW C400GT
R1200GS
R1200R
K1600B
K1600GA
K1600GTL
F750
F850
R1250
R1250RT
BMW C400X
BMW C650GT
F750GS
K1600
K1300
C600
F800
K19

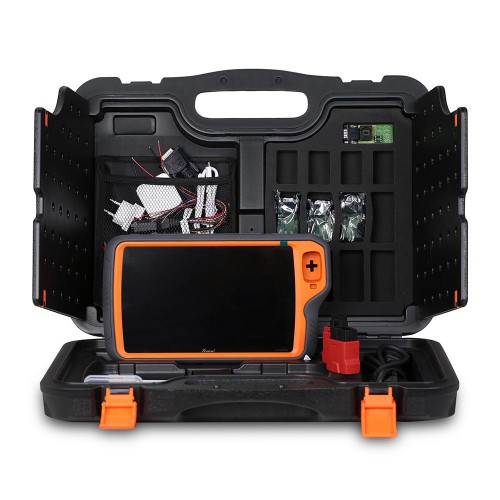

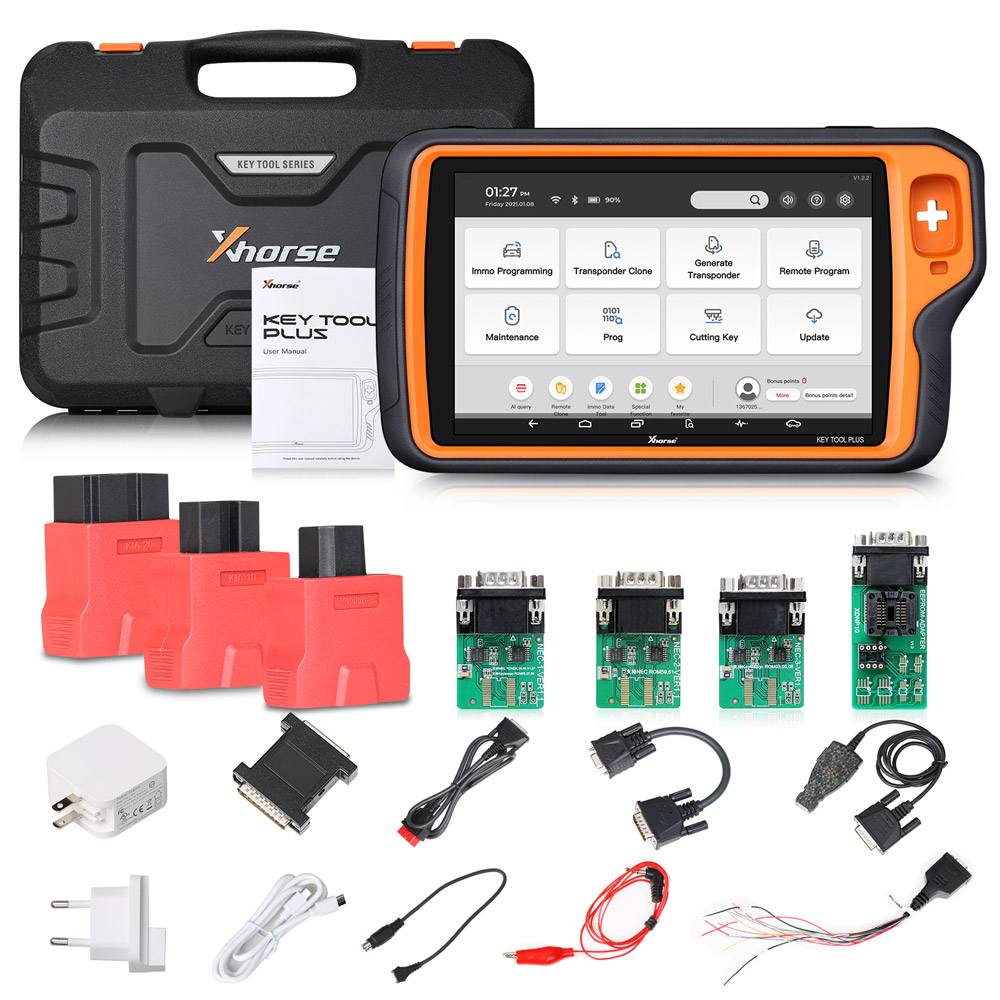

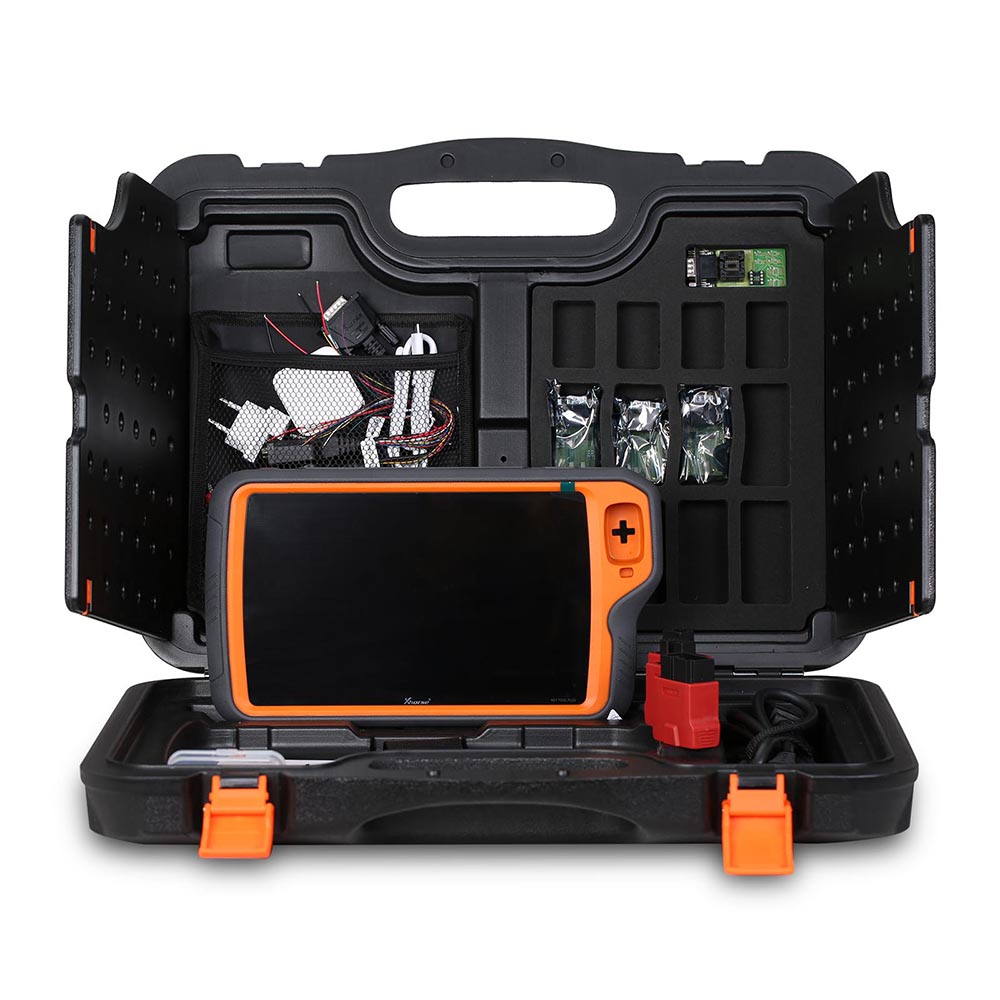

Package List:

1pc x Pad Main Unit
1pc x User Manual
1pc x Power Adapter
1pc x USB Cable 3.0 Type C
1pc x OBD DB25 Cable
1pc x OBD to Kia 10 Pin Connector
1pc xOBD to Honda 3 Pin Connector
1pc x Remote Programming Cable
1pc x Chip Storage Container
1pc x Prog DB15 Cable
1pc x Prog EEPROM Adapter
1pc x MB IR Adapter
1pc x MB NEC1 Adapter
1pc x MB NEC2 Adapter
1pc x MB NEC3 Adapter
1pc x MB Power Adapter
1pc x MC9S12 Reflash Cable
1pc x ECU Cable








---
