EU Ship No Tax Xhorse Universal Mercedes Benz FBS3 KeylessGo Smart Key 315MHZ/ 433MHZ Get 1 Free Token for VVDI MB

Produktbeschreibung

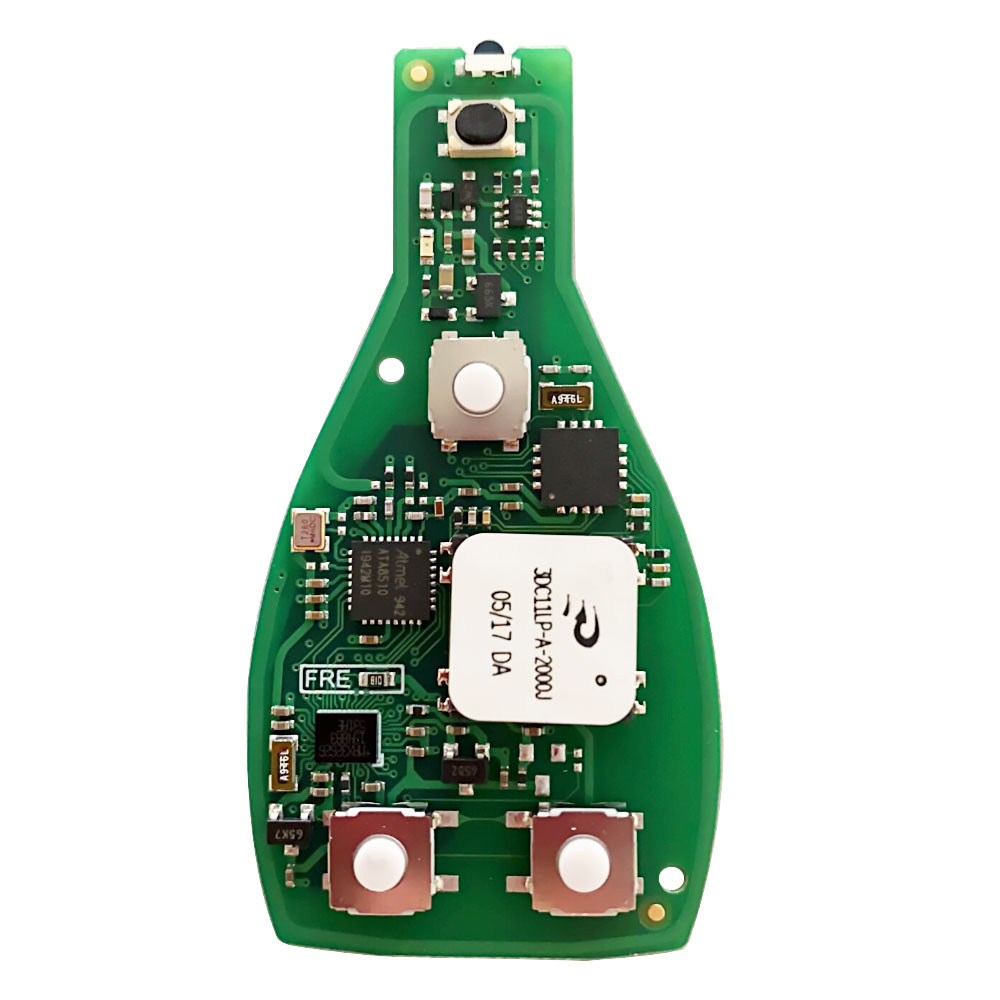

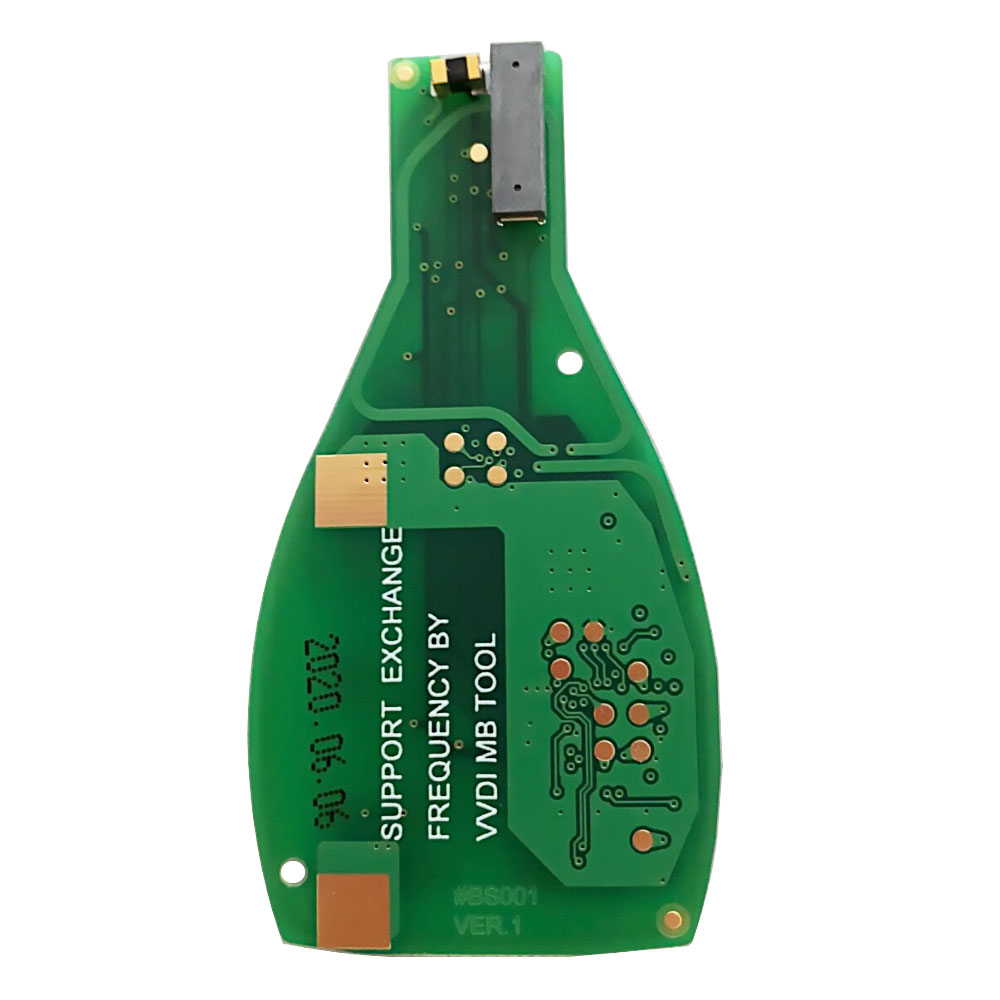

Xhorse Universal Mercedes Benz FBS3 KeylessGo Smart Key 315MHZ/433MHZ

Features:

1. Can be Renewed, Stable & Reliable,
2. Universal Mercedes Benz FBS3 Smart Key
3. No Need Battery Insertion for Writing Data by Infrared
4. Battery-Free IR Write Data, Passive Keyless Entry Keyless Go
5. With 200 Free Points (1 VVDI FBS3 Key  = 200 Points = 1 Token for VVDI MB)
6. Work for Mercedes Benz W204 W207 W212 W164 W166 W221, Keyless Entry + Push Button Start
7. Support Exchange Frequence 315MHZ/ 433MHZ. you can change frequency free via VVDI MB Tool software. Or remove resistor.
8. Users are Able to Write the Data to BE Key Unlimited Times. After that, please insert battery and wait for one minute before starting the vehicle.

Supported Models:

C-class W204, W207
E-class W212
R-class W251
S-class W221, W216
CL-W216
CLC-W204
CLE-W207
CLK-W207
GL-X164, X166
GLC-X204
GLE-W164, W166
GLK-X204
ML-W164, W166

VVDI MB Tool Software Update (Support VVDI Smart Key (FBS3) Get Bonus Points)

Support Passive keyless entry + keyless go
Support Battery-free IR write data: without times limit.
Support Firmware upgrade
Support 433MHZ/315MHZ free switch: set frequency through VVDI-MB or switch over different special resistance.

How to Exchange FBS3 Smart Key Frequency Between 315MHz and 433MH?

Method 1:
If you have VVDI MB Tool, it is easy to change frequency in vvdi mb software (update software to latest version)

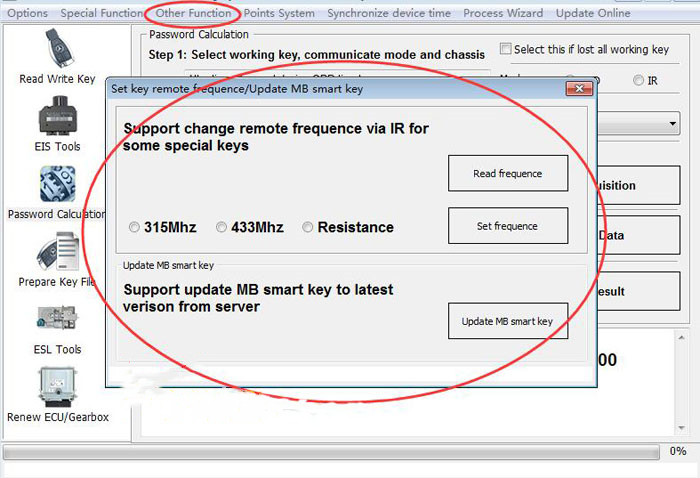

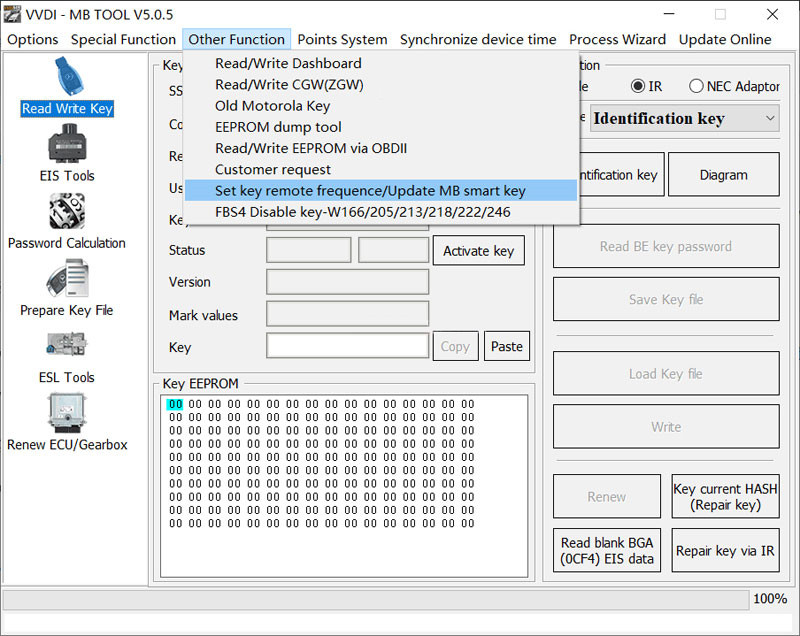

Select Other Function-> Set key remote frequency/ Update MB smart key



You Can Set Frequency Between 315MHz and 433MHz



Method 2:

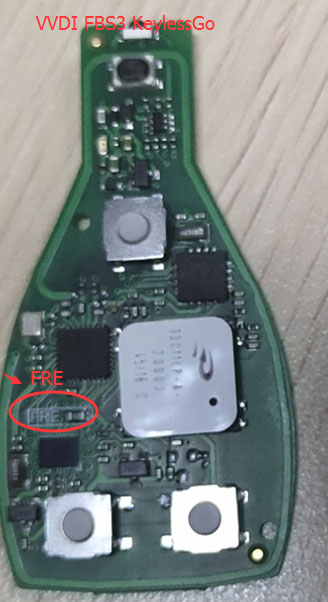

If without VVDI MB, you can change FBS3 keylessgo smart key frequency manually by soldering / desoldering the FRE resistor (marked red in picture below)



How to Collect Points and Exchange BGA Token?

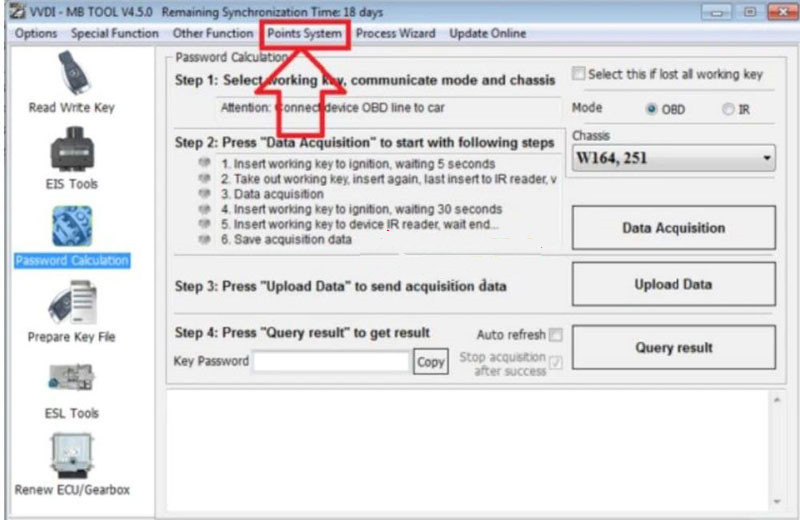

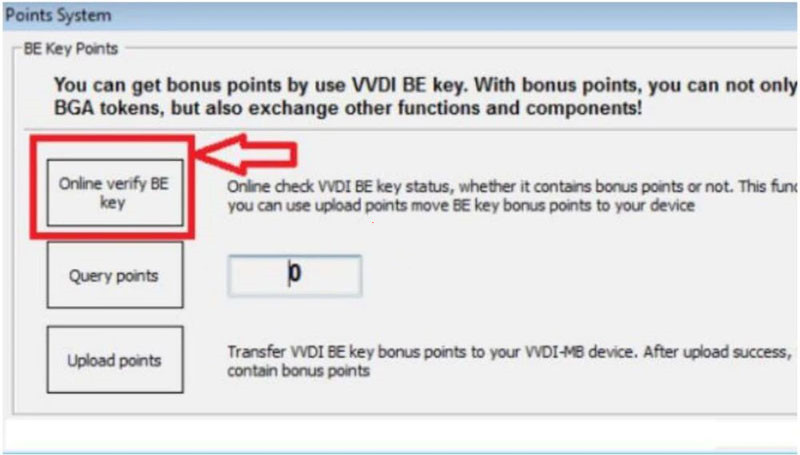

1. Collect points

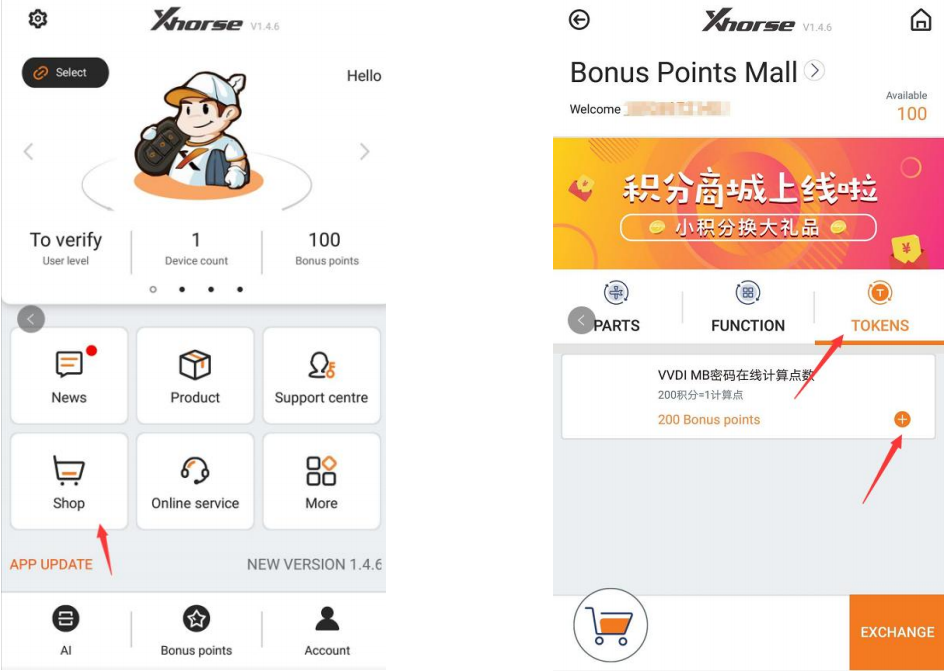

2. Bond VVDI MB in your Xhorse APP
3. Run APP to scan QR code



Note:

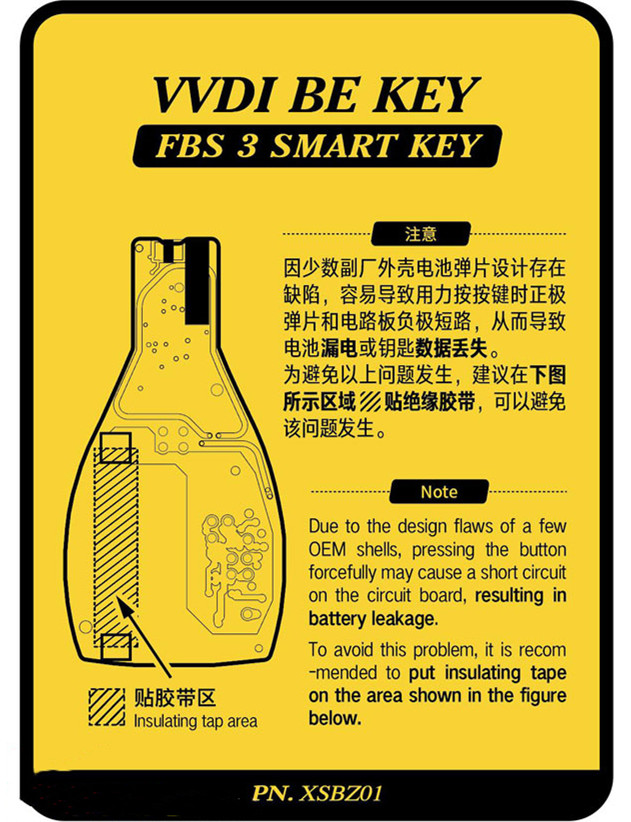

Due to the design flaws of a few OEM shells, pressing the button forcefully may cause a short circuit on the circuit board, resulting in  battery leakage.
To avoid this problem, it is recommended to put insulating tape on the area shown in the figure below.



Package List:

1pc x Mercedes Benz FBS3 KeylessGo Smart Key







---
