Produktbeschreibung
Read immo data (CS code) from mqb working key on the MQB48 platform so can add keys without take the cluster to read on bench.

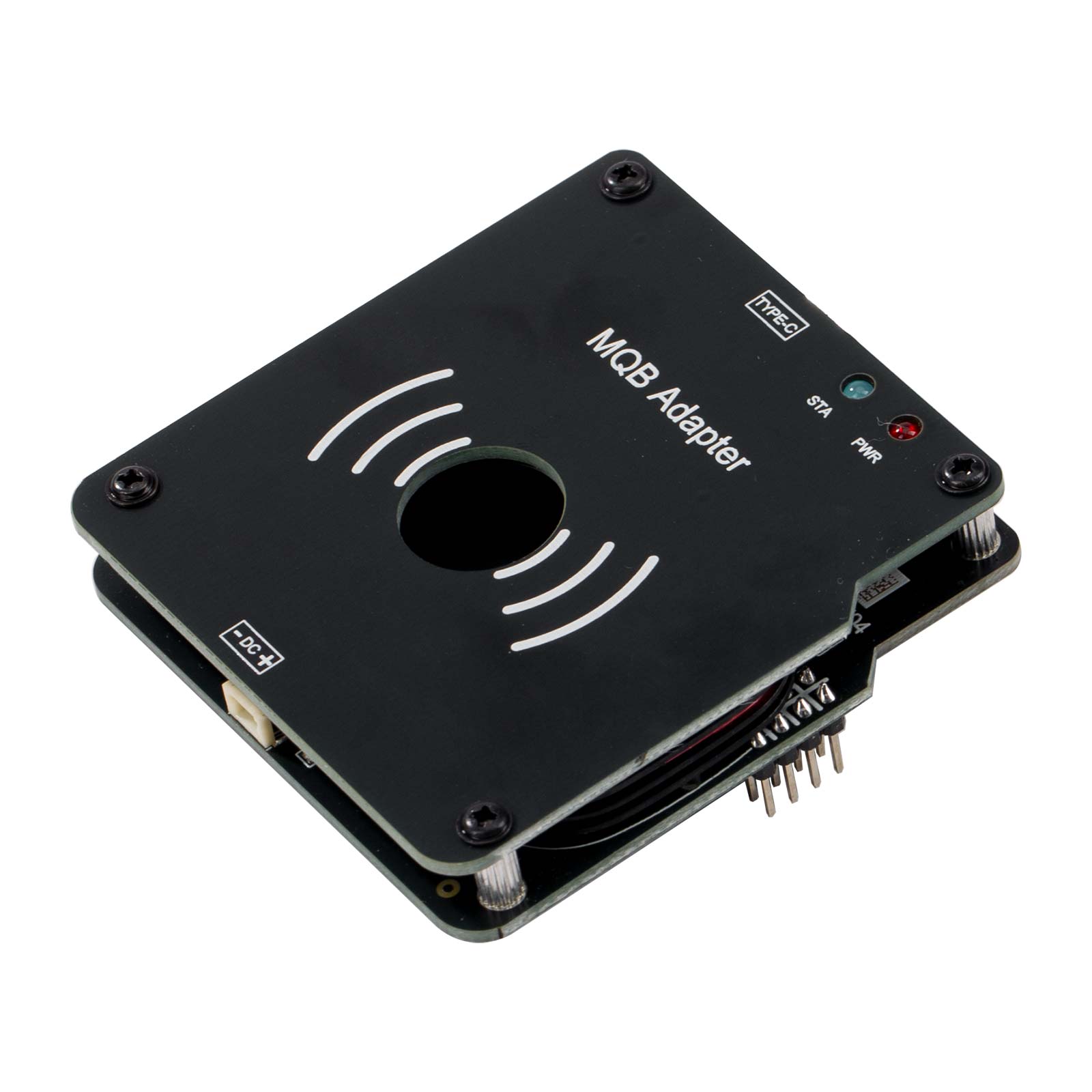

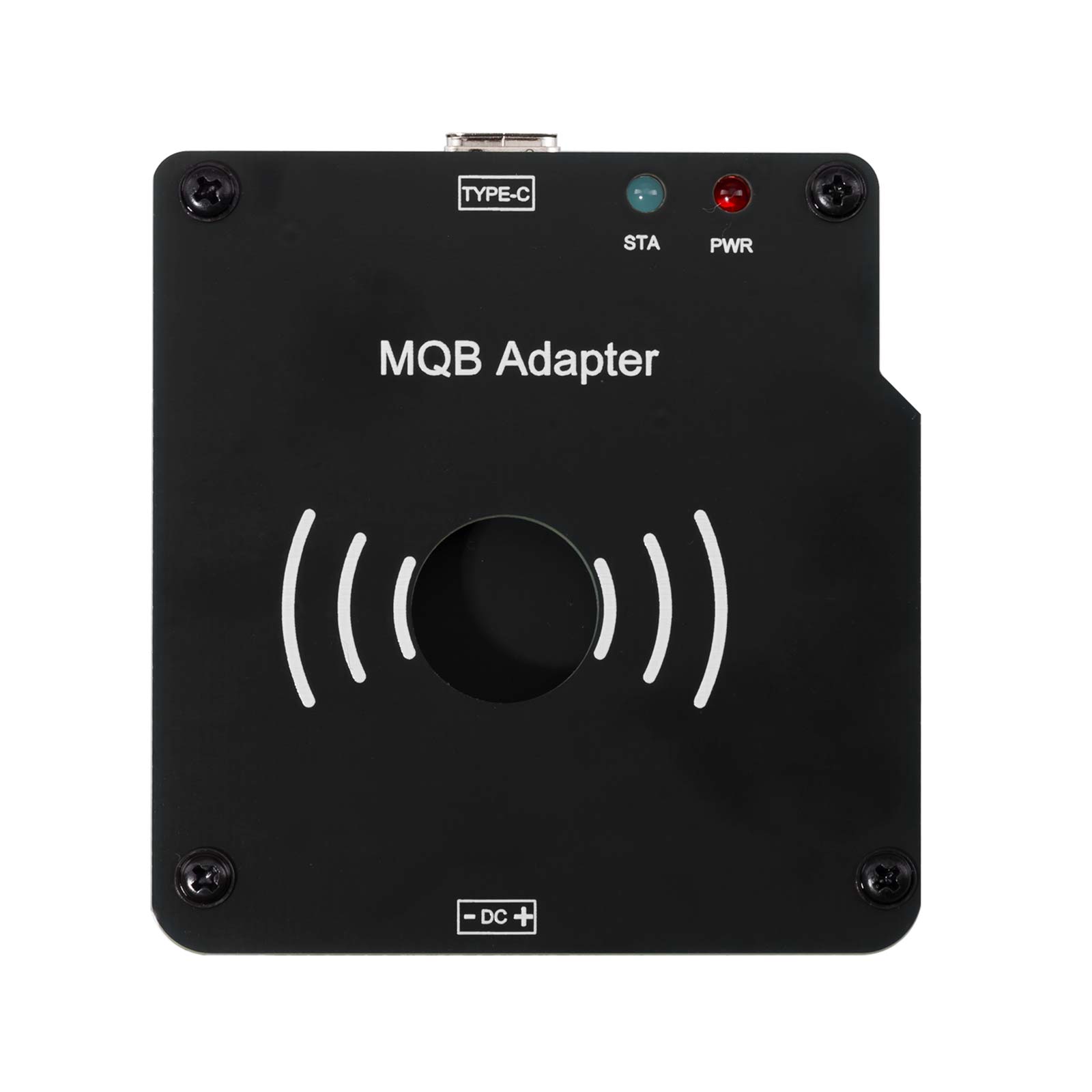

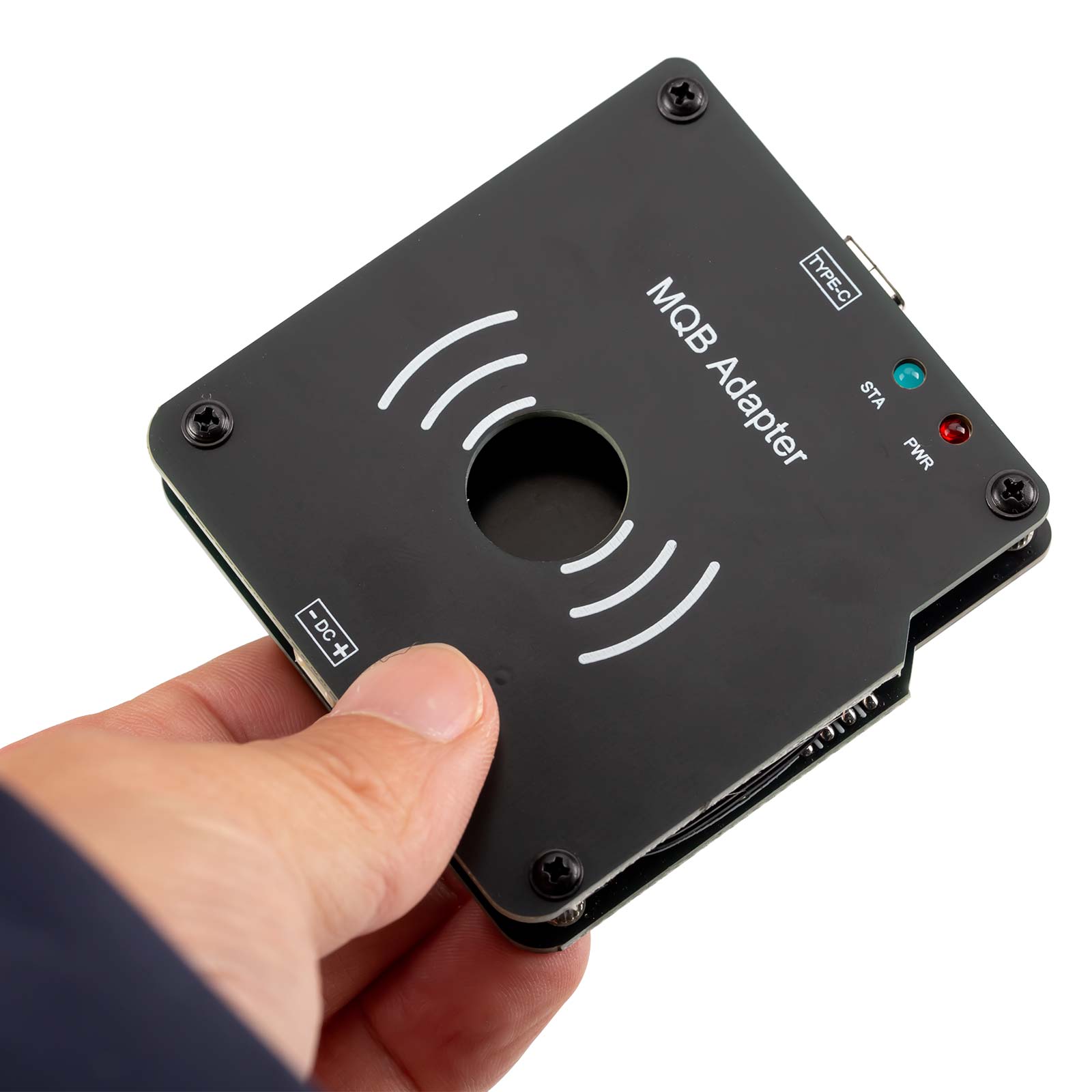

XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Dashboard
VVDI MLB Tool adds MQB48 NEC35XX immo data collection function. XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.
Note: It is strongly recommended that customers collect data on a computer instead of using a tablet.
Features:
1. No need to disassemble the instrument.
2. Easier to read key data and add keys.
3. No points needed for MQB48.
Function:
Similar to MLB, open the key, read data and program additional key.
This new tool is for MQB48 Megamos AES.
Read immo data (CS code) from mqb working key on the MQB48 platform so can add keys without take the cluster to read on bench.
Data Collection Time:
Good power supply: ~15 minutes for data collection, ~1 minute for immobilizer data calculation.
Average power supply: ~30–60 minutes for data collection, ~1 minute for calculation.
Note: It will also connect with key tool plus to collect immo data. But tablets with a single Type-C port have poor power stability, leading to longer collection times and lower success rates. Strongly recommend using a PC.

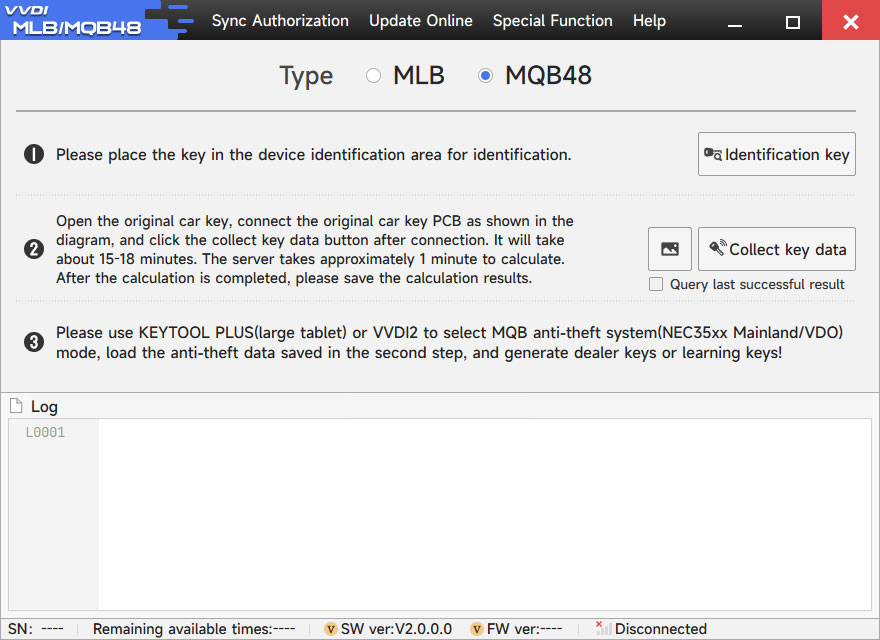

Check Technical support column to see how to use VVDI MLB Tool with MQB48 adapter.

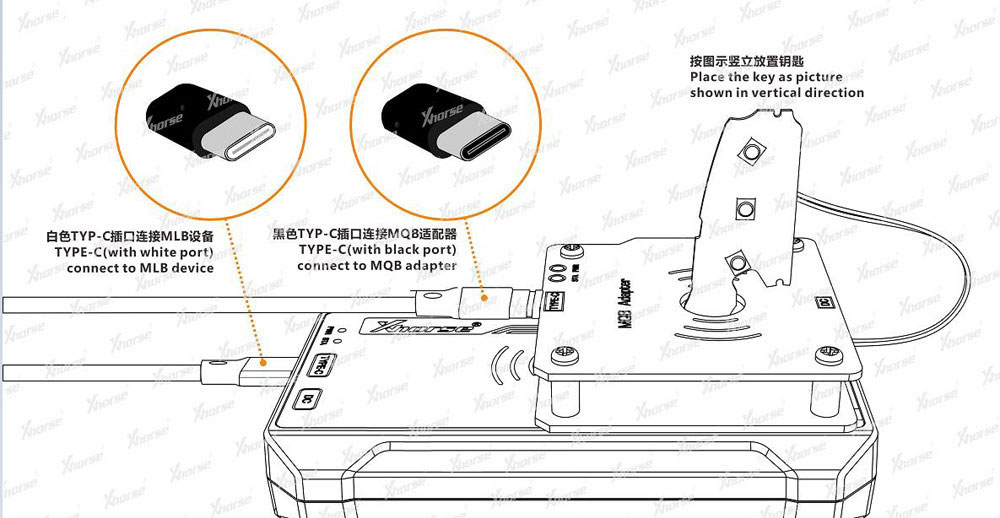

How to Connect VVDI MLB Tool with MQB48 Adapter?
Use two USB cables
2. Easier to read key data and add keys.
3. No points needed for MQB48.
Function:
Similar to MLB, open the key, read data and program additional key.
This new tool is for MQB48 Megamos AES.
Read immo data (CS code) from mqb working key on the MQB48 platform so can add keys without take the cluster to read on bench.
Data Collection Time:
Good power supply: ~15 minutes for data collection, ~1 minute for immobilizer data calculation.
Average power supply: ~30–60 minutes for data collection, ~1 minute for calculation.
Note: It will also connect with key tool plus to collect immo data. But tablets with a single Type-C port have poor power stability, leading to longer collection times and lower success rates. Strongly recommend using a PC.
Check Technical support column to see how to use VVDI MLB Tool with MQB48 adapter.
How to Connect VVDI MLB Tool with MQB48 Adapter?

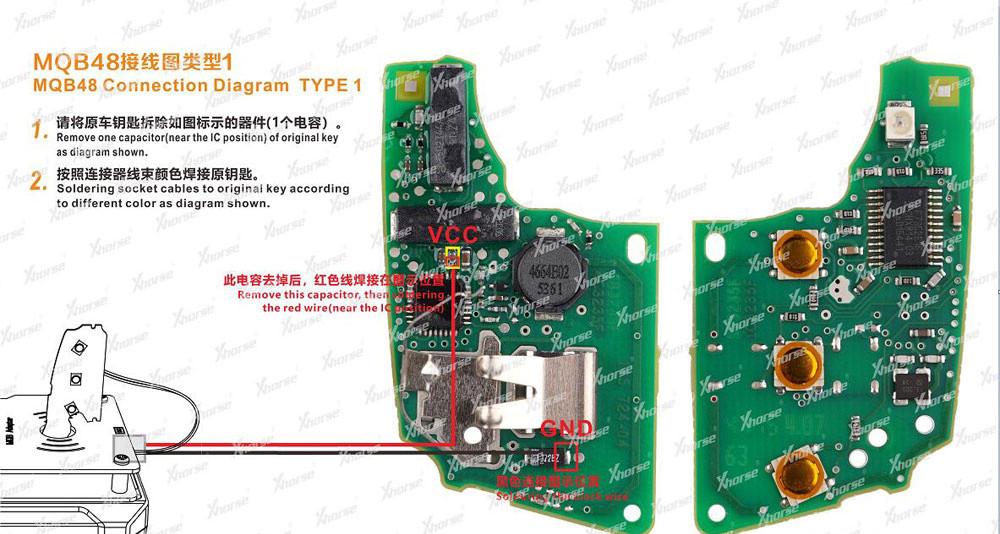

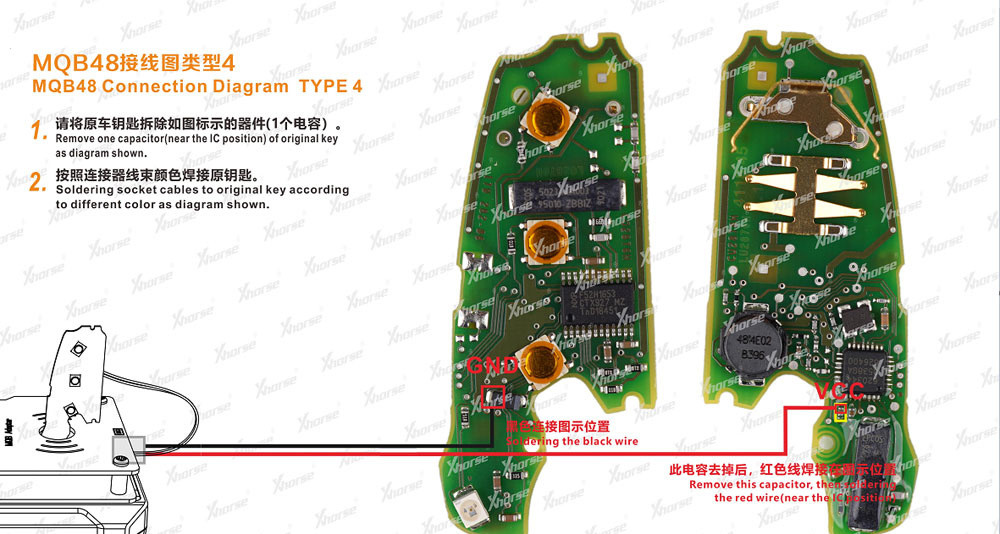

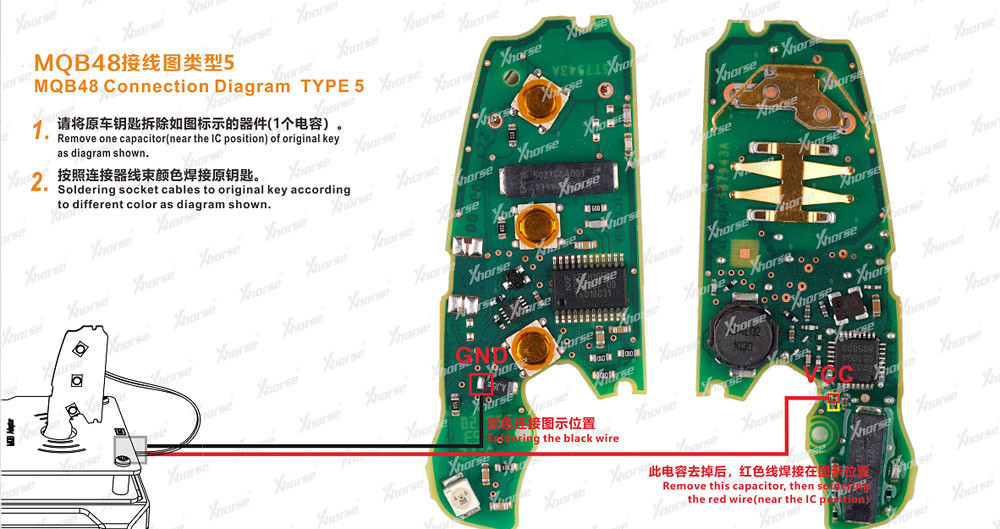

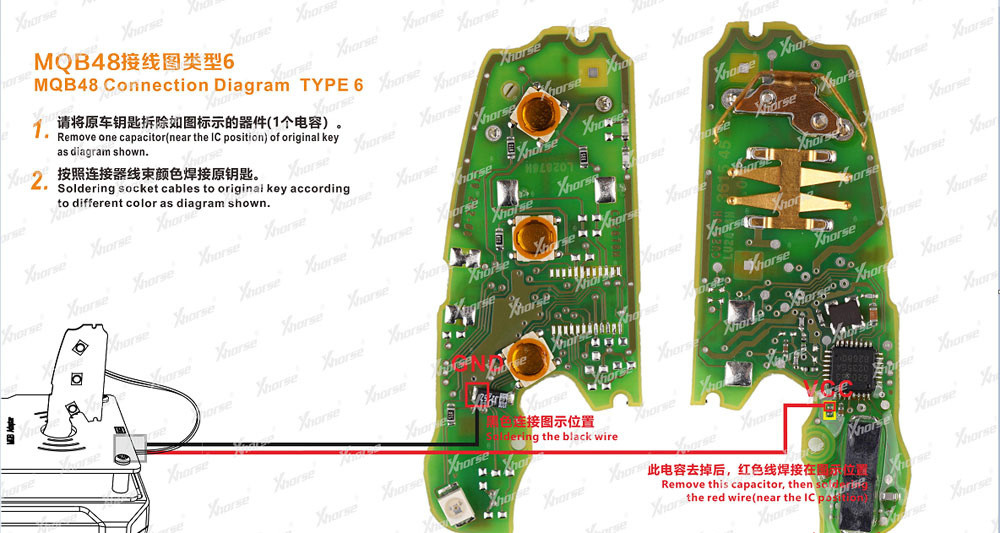

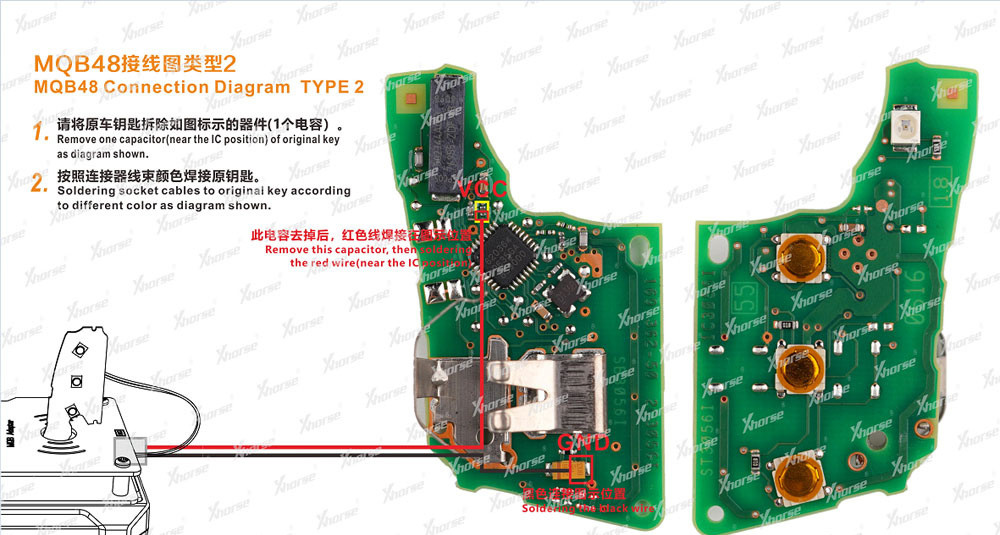

VVDI MLB Tool MQB48 Wiring Diagram
Need to remove one capacitor and solder socket cables.
MLB+MQB adapter instructions
VVDI2 device
1. Use MLB device + MQB adapter to read IMMO data from MQB48 key.
2. Use VVDI2 to load the IMMO data read in the first step: generate key, learn key (VVDI2 needs to enable MQB function, does not need MQB48 NEC35XX locking function)

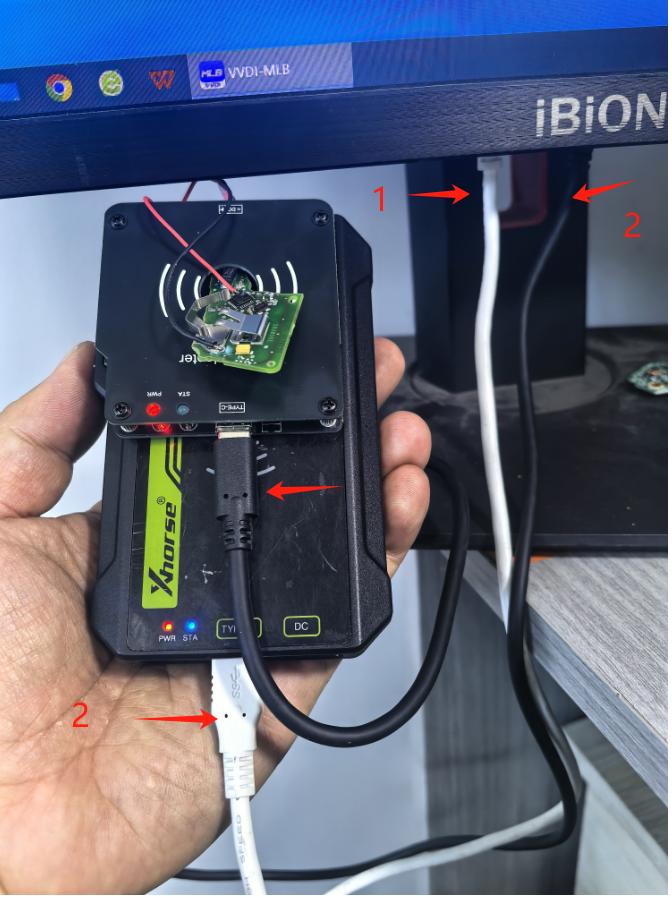

Use two USB cables

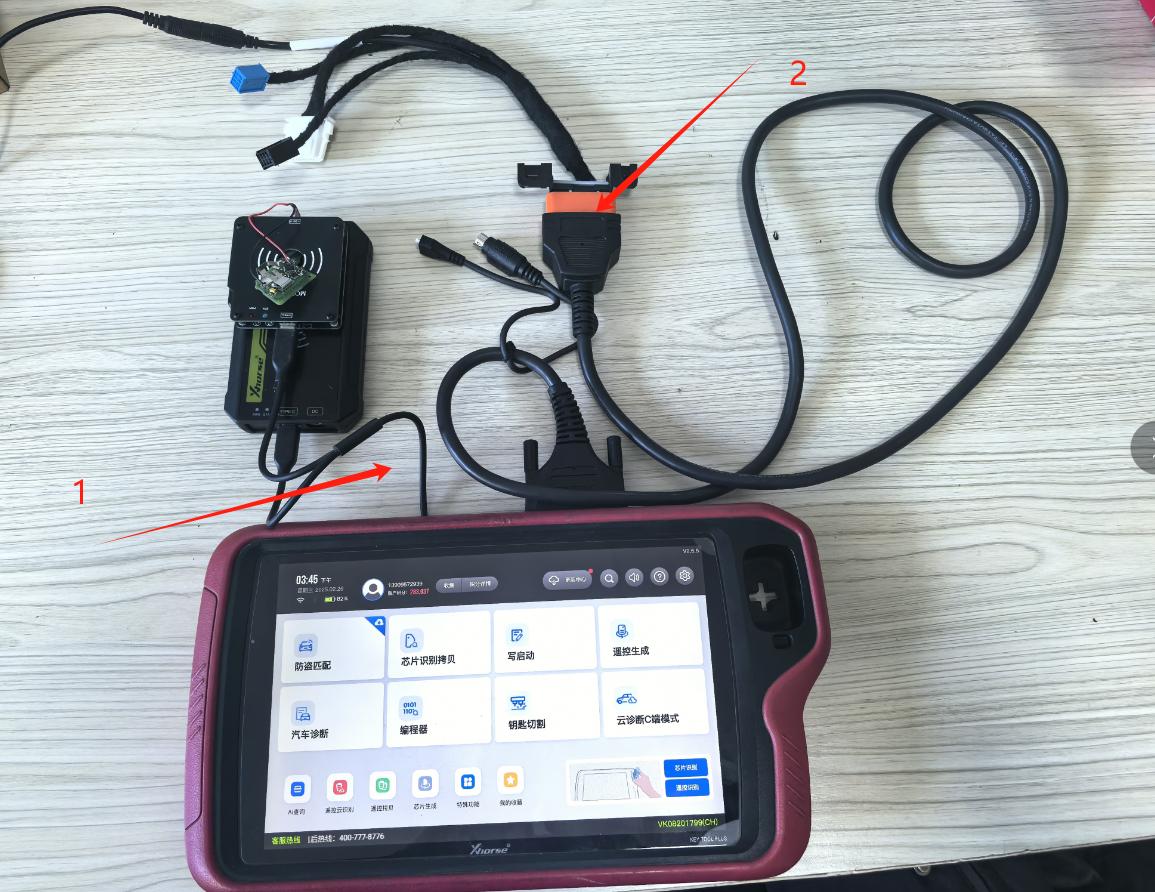

KEY TOOL PLUS / KEY TOOL MIDI device
1. The tablet device is directly connected to MLB device + MQB adapter, and IMMO data can be read from MQB48 key.
2. The tablet device loads the IMMO data read in the first step: generate key, learn key (the tablet device needs to have fourth-generation authorization, does not need MQB48 NEC35XX locking function)
Label 1: Use a Type-C splitter cable.
Label 2: Tablet power quality is insufficient. For better results, connect the OBD to the vehicle or supply external power to the OBD to maintain tablet battery.
Note: Tablets with a single Type-C port have poor power stability, leading to longer collection times and lower success rates. Strongly recommend using a PC.

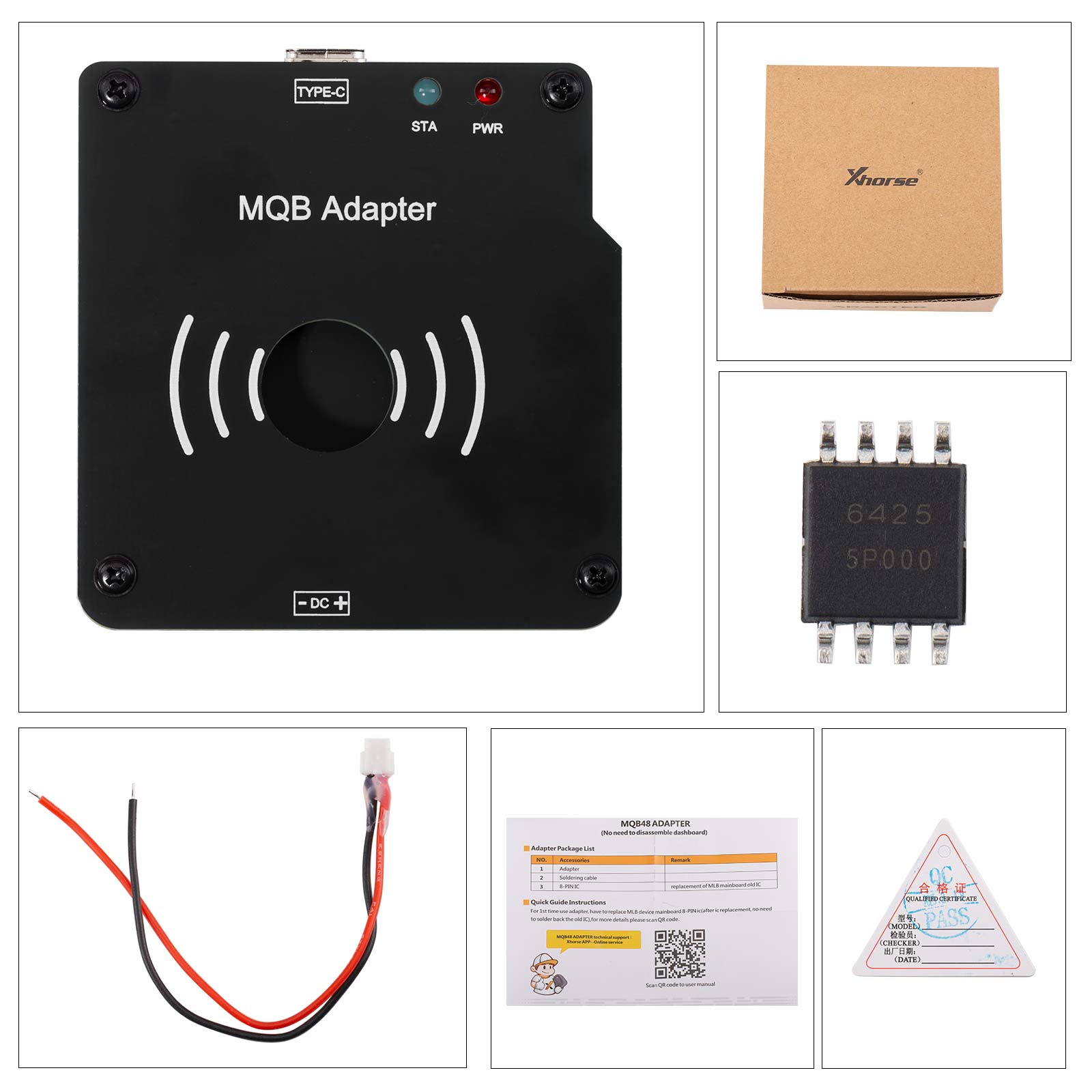

Package includes:
1pc x XHORSE XDMQBAGL MQB Adapter
